Containerized Seawater Reverse Osmosis System | Canada | 32,000 GPD

System Overview

• Application: Agriculture and Fish Farming
• Location: Canada
• System Capacity: 32,000 GPD
• Feed Water TDS: Up to 38,000 ppm
• Power Supply: 460V / 3Ph / 60Hz
• Configuration: Fully Containerized, Plug-and-Play

System Features

• Model: SW-32K-2480
• Powder Coated Carbon Steel Skid for structural strength and corrosion protection
• Duplex Stainless Steel High-Pressure Pump for seawater compatibility
• (8) 8" TFC Spiral Wound Seawater RO Membranes in (2) FRP Pressure Vessels
• Corrosion-Resistant Cartridge Filter Housing
• Multimedia Filter (Model: MLF48-A-F) for turbidity and sediment removal
• 25 & 5 Micron Filters for progressive pre-filtration
• Feed & Backwash Pumps for consistent system performance

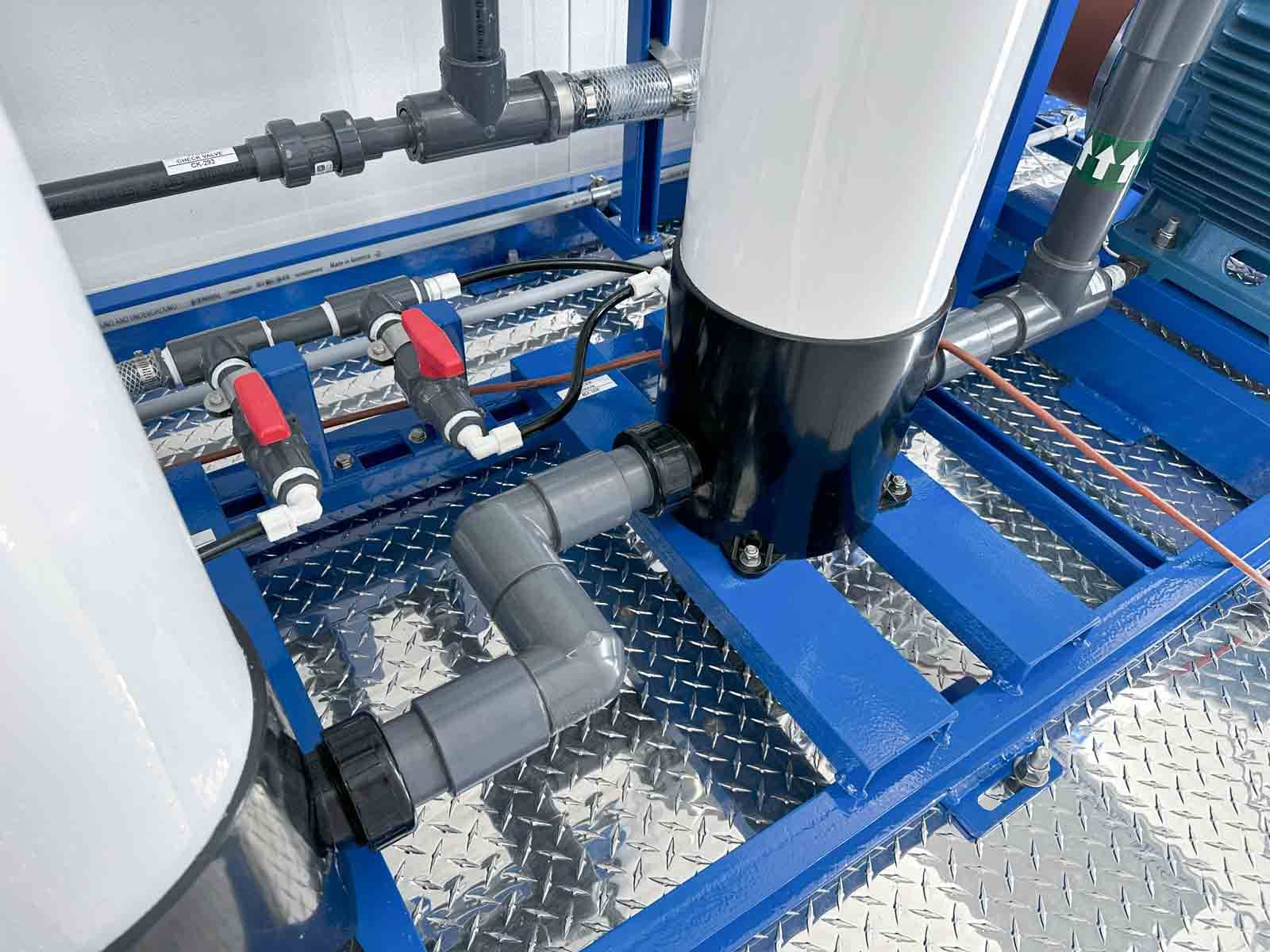

• SCH 80 PVC Low-Pressure Piping

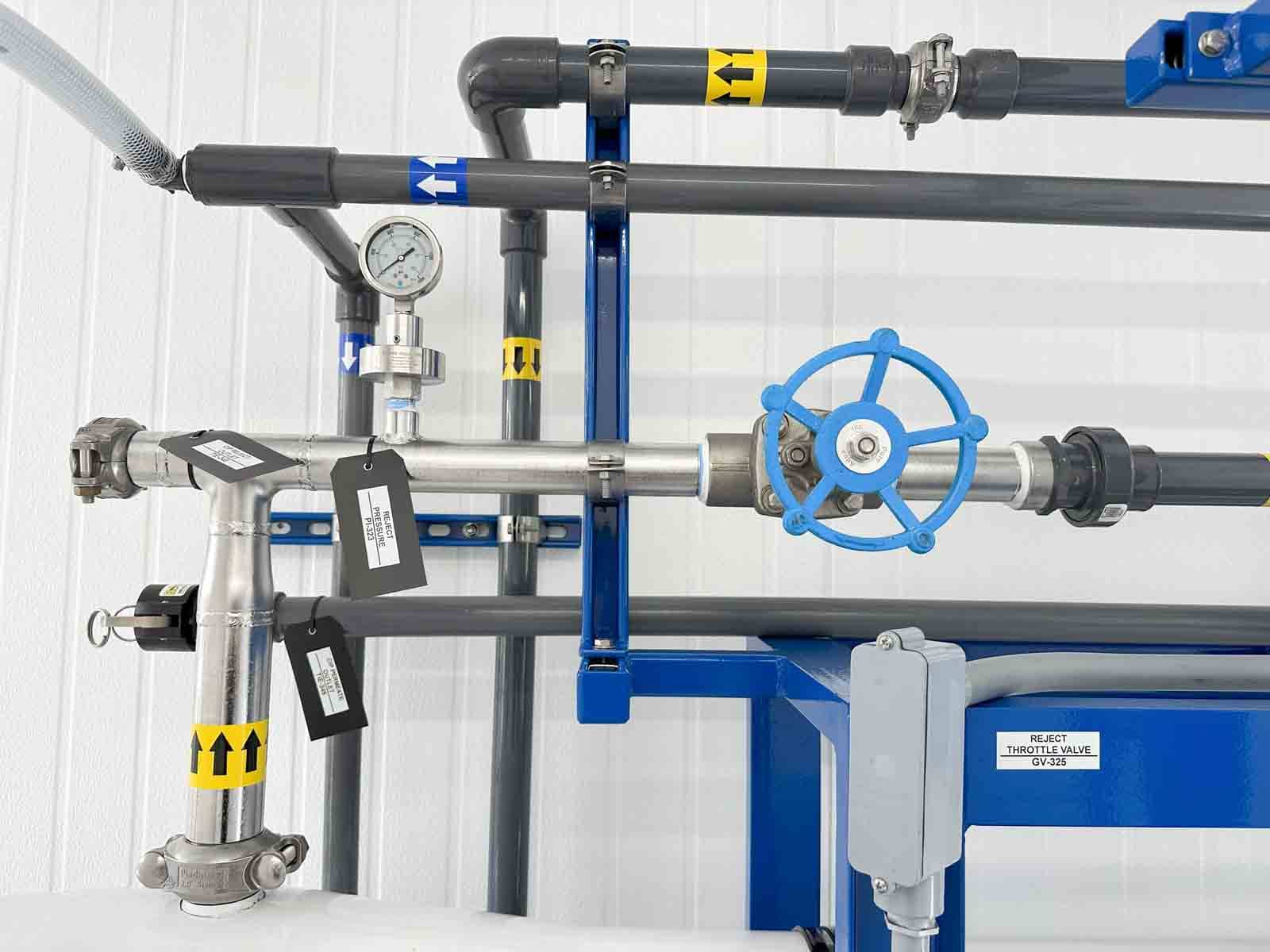

• 316 SS High-Pressure Piping for saltwater durability
• Inlet, Outlet & Check Valves for safe operation
• Siemens S7-1200 PLC for intelligent automation and remote diagnostics
• CIP (Clean-In-Place) System for easy membrane cleaning
• Flushing Loop to prevent membrane fouling and extend service life
• LED Lighting, Aluminum Diamond Flooring, and Full Insulation inside the container

[custom-specifications]

• Treating high-salinity seawater (up to 38,000 ppm TDS) in a remote agricultural and aquaculture environment
• Operating under harsh Canadian climates with fluctuating temperatures
• Ensuring minimal downtime and simplified maintenance in a remote location
• Providing a plug-and-play system that could be installed quickly with limited site work

[/custom-specifications]

[custom-features]

• Delivered a fully containerized SWRO system (SW-32K-2480) with all-weather insulation and LED lighting
• Included a multimedia filter and dual-stage cartridge filtration to protect RO membranes and improve water quality
• Integrated a CIP system and flushing loop to prevent fouling and allow easy membrane maintenance
• Used duplex stainless steel pumps, 316 SS high-pressure piping, and Siemens S7-1200 PLC automation for high durability, energy efficiency, and remote diagnostics
• Designed for quick deployment, enabling fast installation and startup in the field

[/custom-features]

[custom-usage]

• Built for Harsh Environments: Marine-grade components and insulated housing for all-weather performance
• Plug-and-Play Deployment: Fully containerized and factory-assembled for quick site installation
• Designed for Agriculture and Aquaculture: Produces high-quality freshwater suitable for crop irrigation and fish farming
• High Durability & Automation: Siemens PLC, stainless steel components, and CIP system reduce manual maintenance
• Energy Efficient & Reliable: VFD-ready pumps and multi-stage filtration improve operational efficiency and system lifespan
