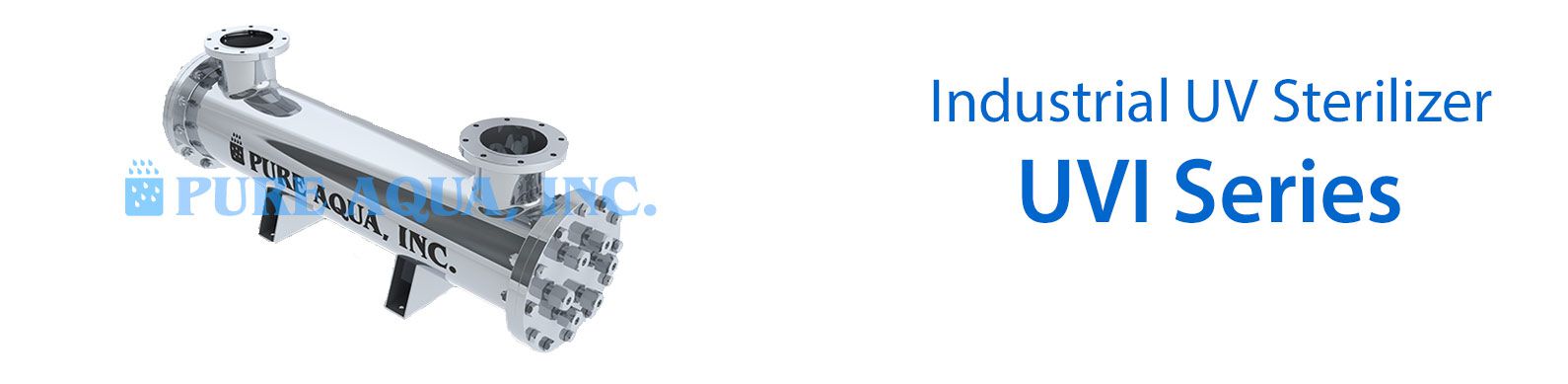

Industrial UV Sterilizers UVI

Quality Systems at an exceptional value
Product Description

Pure Aqua's UVI systems represent a cutting-edge series from Aquafine called "The OptiVenn Series". This series is designed from a selection of exceedingly durable and flexible Ultraviolet water treatment systems that are built from advanced technologies and in compliance with the requirements of various most major industries. The OptiVenn series is accommodated with highly desirable and in-demand features such as compact footprints, demonstrated components, easy installation, and an all-inclusive warranty.

Benefits of Industrial UV Sterilizers UVI:
  • Effective - Virtually all microorganisms are susceptible to UVI disinfection.
  • Automatic - Continuous or intermittent disinfection without special attention or measurement.
  • Fast - Water is ready for consumption as soon as it leaves the cell, no further contact time needed.
  • Easy - Simple installation and maintenance. Minimum space requirements.
  • Safe - No danger or way of overdosing, no addition of hazardous chemicals.
  • Versatile - Capacities available from 40 to 1,300 gallons per minute.
  • Economical - Hundreds of gallons of water can be purified for just pennies a day.
  • No Chemicals - No chlorine taste or corrosion problems.

Questions & Answers

Do UV water purifiers really work?

UV water sterilizers are believed to provide the best remedy for removing biological contaminants from drinking water. Ultraviolet water treatment systems work by emitting UV lights from various sources, such as the sun. These UV lights discharge beams of radiation that are meant to eradicate bacteria and other microorganisms in water. While effective, the performance of these UV lights depend on how much intensity the system is able to emit. If water treatment systems are not able to produce high intensity UV lights, then the radiation will be insufficient in killing the DNA of all existing bacteria and viruses in the water. These same UV lights also happen to be invisible to the naked eye, which makes it difficult to ascertain the condition of the UV system. This commonly leads to water treatment companies unwittingly using defective UV systems for long duration's. For this reason, Pure Aqua engineers recommend substituting the lamp in your UV water treatment system at least once a year.

Does UV light kill bacteria in water?

Yes, the essential function of UV lights is to wipe out biological contaminants such as bacteria and viruses. However, it is ineffective in targeting other contaminants such as chlorine, salts, heavy metals, and etc. UV also fails in altering the water’s chemistry.

Why UV treated water is not harmful for drinking?

No, UV water purification systems are designed to make drinking water safe by eradicating harmful contaminants from untreated water. They are best used alongside other water filtration systems, such as reverse osmosis, to effectively remove all types of contaminants.

Can UV light sterilize water?

UV light sterilizers are designed to do just that; sterilize water, swiftly and conclusively. They operate constantly to guarantee your water is purified to a clean extent. However, for the sterilization process to work effectively, the water must be purified before entering the system, and not contain any wastes or debris.

How does UV light clean water?

UV water purification systems disinfects living microorganisms by exposing them to ultraviolet lights. However, they do not filter them out of the water, nor do they remove other harmful contaminants. At the same time, water filters, such as reverse osmosis systems do not eradicate bacteria and viruses as well as UV light sterilizers. Ultraviolet sterilizers are required to work in conjunction with water filtration systems in order to produce clean drinking water.

Do UV Water Treatment Systems require regular maintenance?

Yes, UV water treatment systems will need periodic maintenance. Fortunately, UV systems are generally basic and straightforward to understand. Here are some aspects to observe to ensure your UV purification system will continue performing optimally for years to come:

  • UV lamps are the foundation of UV water purification systems, and must be substituted at least once a year. This is due to the UV lamps gradual reduction in light wave intensity by more than 50% of what a fresh lamp produces. If you happen to turn your UV lamp on and off more that twice a day, then the lifespan of the lamp will shorten even faster.

  • UV sleeves are used to protect the UV light lamp and must be changed at least once every couple of years. Since the water running through UV light systems carry debris, sediments, and other minerals, the UV sleeves are left vulnerable to being congested by these materials. If this occurs, then the UV sleeves will begin to impede the UV lights from piercing through the sleeve and water.

UV Water Sterilizers: Industries

Pure Aqua designs Industrial UV water treatment systems that produce remarkable results in industries, such as:

  • Mining - Pure Aqua’s membrane systems are built to minimize the amount of waste fostered in large-scale mining operations. A great deal of this purified water can be reworked, which lowers the usage needed from local water sources.

  • Marine – Our desalination systems ensure a continuous provision of pure freshwater while the world’s water resources become increasingly scarce, and/or contaminated.

  • Military - Military water filtration systems made with meticulous accuracy to ensure it is free of error. The final result is an efficient, reliable and durable military grade reverse osmosis systems that are well-founded in the military industry all over the world.

  • Food and Beverage – Water purification is a vital component in the food and beverage industry since it has a direct contiguity with human consumption.

[custom-specifications]
industrial-uv-sterilizer-uvi-series-40-1800-gpm-water-disinfection-uv-sterilizers-pure-aqua-inc

Speciffications

SUV-35

SUV-60

SUV-87

SUV-120

SUV-164

SUV-230

SUV-320

SUV-353

SUV-564

SUV-700

SUV-793

SUV-1080

SUV-1398

SUV-1412

SUV-2206

Flow Rate (gpm)

35

60

87

120

164

230

320

353

564

700

793

1080

1398

1412

2206

Number of UV lamps

1

2

3

2

2

4

4

4

4

6

8

8

8

10

12

Treatment Chamber

Material of Construction

316L Stainless Steel

Lamp Length - inch

15

30

60

Chamber

diameter - inch

6

8

6

8

6

8

10

12

14

16

ANSI flanges size- inch

2

3

4

6

8

10

Electrical

Volts

110-240V, 50/60Hz, Single Phase, 2W+GND

Power Consumption (W)

63

145

165

155

155

297

297

583

583

1,153

1,438

1,438

1,438

1,723

2,008

Operating

Conditions

Maximum water operating temperature F° (C°)

40º-104º (5º-40º)

Maximum Operating Pressure PSI (BAR)

150 (10)

Surface Finish

Ra15

Elastomers

EPDM

Control Panel

Material of Construction

304 Stainless Steel

Rating

UL Type 1 (IP51)

UL Type 12 (IP54)

with Fan

Size (HxWxD) in (cm)

16x16x7 (41x41x18)

16x20x9 (41x51x23)

22x23x9 (59x59x23)

Shape

Flat Top

Sloped Top

Cooling Mechanism

Fan

Operating Temp Fº (Cº)

34º-104º(1º-40º)

Monitoring and Controls

Base Package: Lamp status indicator, System hours of operation, Lamp out alert (LOA) and Remote start/stop (HOA)

For more information, please view/download our "Data Sheet"

System designed based on 94% UVT, Dose Level: 30 mJ/cm2 after 9,000 hours of operation

[/custom-specifications]

[custom-features]
industrial-uv-sterilizer-uvi-series-uv-sterilizers-pure-aqua-inc

Standard Features

Available Options

Operation Specifications

  • Low-pressure high-output lamps (LPHO)
  • Lamp status indicator
  • System hours of operation
  • Lamp out alert (LOA)
  • Remote start/stop (HOA)
  • 304 stainless steel control cabinet
  • 316L stainless steel treatment chamber
  • Ra 32 internal surface finish
  • EPDM Elastomers
  • UV Monitoring Package: UV intensity reading with NIST certified sensor
  • Control Panel: Sloped Top
  • 4-20mA output signal with UV monitoring option
  • Viton Elastomers
  • Ra 15 internal surface finish
  • Electrical Supply: 100-240V/50-60Hz
  • Max. Operating Pressure: 150 psi (10 bar)
  • Ambient Air: 34-104°F (1-40°C)
  • Water Temperature: 40-104°F (1-40°C)

[/custom-features]

[custom-usage]

The ultraviolet method of microbiological eradication is commonly used for:

  • Homes
  • Hotels
  • Schools
  • Green Houses
  • Beauty Shops
  • Cottages
  • Farms
  • Hospitals

[/custom-usage]

[custom-documents] [/custom-documents]
[custom-360-view]

Here at Pure Aqua, Inc., we engineer and build all of our water treatment systems in-house.

Our turn-key water treatment systems are all pre-engineered using the latest CAD technology available.

This enables our teams to build and deliver treatment systems to our customers with quick turnaround times.

Many of our customers require custom engineered systems. These are typically built around similar core systems and thus allowing for improved turnaround times, even for one-off designs.


[/custom-360-view]
