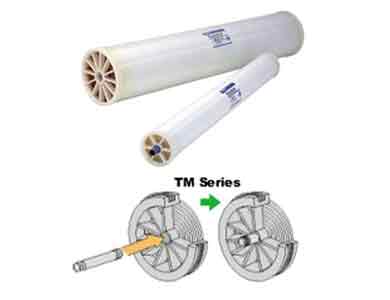

Toray SUL-G20FTS Membrane

NaCl Solution

Salt Rejection ¹: 99.5 %²

Product Flow Rate ¹: 36m³/day (9500 gpd)³

[custom-specifications]

MODEL SUL-G20FTS

• Membrane Type: Cross Linked Fully Aromatic Polyamide
• Composite Element Configuration: Spiral Wound

[/custom-specifications]

[custom-features]

• Eliminate the environmental contaminants
• Recover acid flows.
• Hot condensate cleaner
• Pre-concentrate fluxes before evaporator
• Reduce the volume of wastewater by increasing the water reuse
• Reduce operating costs

Notes:

1. Test Conditions Feed Water Pressure 0.75 MPa (110psi)

• Feed Water Temperature 25 °C (77 °F)
• Feed Water Concentration 500 mg/ as NaCl
• Brine Flow Rate 80 /min. (21 gpm)
• Feed Water pH 6.5

2. 99.0 % minimum*

3. 29 m³/day ( 7660 gpd) minimum* *For any single element

[/custom-features]

[custom-usage]

• Municipal industrial
• Process water
• Reverse osmosis plants

[/custom-usage]

[custom-documents]

Toray SUL-G20FTS Membrane Data Sheet

[/custom-documents]
