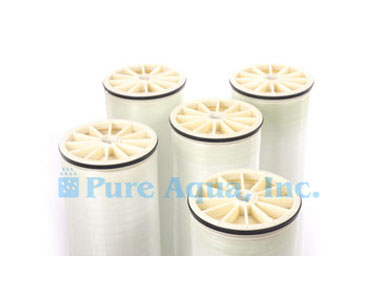

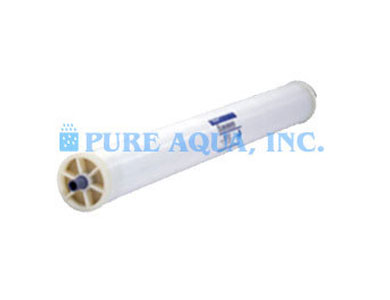

Toray TM720C-440 Membrane

Toray TM720C-440 Membrane
Product Description

Following TM720C-440 membranes can be used in multiple membrane systems to treat municipal industrial or process water as well as commercial application using the 8” membrane types.
For individual membrane selection by application or membrane type please use the membrane product search feature.

1. Membrane Type



Cross Linked Fully Aromatic Polyamide Composite

2. Test Conditions



Feed Water Pressure

Feed Water Temperature Feed

Water Concentration

Recovery Rate

Feed Water pH



150 psi (1.03MPa)

77°F (25°C)

2,000 mg/l Nacl

15%

7

3. Minimum Salt Rejection



98.2%

4. Minimum Product Flow Rate



6,200gpd (23.5m³/d) (TM720C-440)

5. Boron Rejection (typical value)



95% at pH 10 (5mg/l Boron added to Feed water)
[custom-specifications]
Specifications:

Type

Diameter Inch

Membrane Area ft²(m²)

Salt Rejection %

Product Flow Rate gpd(m³/d)

Feed Spacer

Thickness

mil

TM720C-440

8”

440(41)

99.2

9,000(34.1)

28
[/custom-specifications]
[custom-features]
Operating Limits
  • Maximum Operating Pressure: 600psi (4.1 MPa)
  • Maximum Feed Water Temperature: 113°F (45°C)
  • Maximum Feed Water SDI15: 5
  • Feed Water Chlorine Concentration: Not Detectable
  • Feed Water pH Range, Continuous Operation: 2-11
  • Feed Water pH Range, Chemical Cleaning: 1-12
  • Maximum Pressure Drop per Element: 20psi (0.14 MPa)
  • Maximum Pressure Drop per Vessel: 60psi (0.4 MPa)

[/custom-features]

[custom-usage]

  • Municipal industrial
  • Process water
  • Commercial applications

[/custom-usage]
