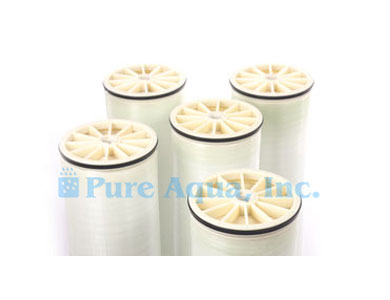

Toray TMH10A Membrane

Toray TMH10A Membrane
Product Description

Following TMH10A membranes can be used in multiple membrane systems to treat municipal industrial or process water as well as commercial application using the 4” membrane types.

For individual membrane selection by application or membrane type please use the membrane product search feature.

1. Membrane Type



Cross Linked Fully Aromatic Polyamide Composite

2. Test Conditions

Feed Water Pressure

Feed Water Temperature

Feed Water Concentration

Recovery Rate

Feed Water pH

100 psi (0.69MPa)

77°F (25°C)

500 mg/l Nacl

15%

7

3. Minimum Salt Rejection



99.0%

4. Minimum Product Flow Rate



1,900gpd (7.2m3/d) (TMH10A)

8,800gpd (33.3m3/d) (TMH20A-400)
[custom-specifications]
Specifications

Type

Diameter Inch

Membrane Area ft2(m2)

Salt Rejection %

Product Flow Rate gpd(m3/d)

Feed Spacer

Thickness

mil

TMH10A

4”

87(8)

99.3

2,400(9.1)

31
[/custom-specifications]
[custom-features]
Operating Limits:
  • Maximum Operating Pressure: 365psi (2.5 MPa)
  • Maximum Feed Water Temperature: 113°F (45°C)
  • Maximum Feed Water SDI15: 5
  • Feed Water Chlorine Concentration: Not Detactable
  • Feed Water pH Range, Continuous Operation: 2-11
  • Feed Water pH Range, Chemical Cleaning: 1-12
  • Maximum Pressure Drop per Element: 20psi (0.14 MPa)
  • Maximum Pressure Drop per Vessel: 60psi (0.4 MPa)

[/custom-features]

[custom-usage]

  • Municipal industrial
  • Process water
  • Commercial applications

[/custom-usage]

[custom-documents]
Toray TMH10A Membrane
[/custom-documents]
