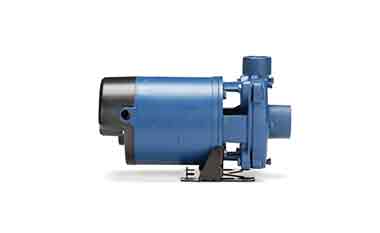

CJ103 Single-Stage Centrifugal Pumps

CJ103 Single-Stage Centrifugal Pumps
Product Description

Single and multi stage CJ103 Centrifugal pumps are non-self priming with suction lifts up to 25 feet. Applications include booster service, water circulation, liquid transfer, cooling systems, jockey pump service and general service in farm, commercial and industrial applications.

[custom-specifications]

CJ103 Series Centrifugal Pumps, Low Lead Brass Impellers

Model

No.

HP

Stages



Lift FT.



Discharge Pressure PSI

Max Press PSI



Max Case Press

Max Liquid Temp

 10

 15

 20

25

30

35

40

45

50



 Capacity U.S. GPM

 1 Phase

 3 Phase

CJ103031AB



 1/3



1



5

15

      25

42
36
28

34
26

 21



















27

100psig

200º F



CJ103051AB
CJ103051TAB



 1/2

1

5

15

25

50
43
33

47
40
30

37
29
15

25
9











32

 100psig

200º F

CJ103071 CJ103071T

 CJ103073 CJ103073T

 3/4

1

5

15

25

71
66
57

62
54
43

51
40
25

36
19

 11







32

 100psig

200º F

CJ103101 CJ103101T

 CJ103103 CJ103103T

 1

1

5

15

25

76
73
66

69
65
57

61
54
45

50
41
29

 36
24		 16







39

 100psig

200º F

CJ103151 CJ103151T

 CJ103153 CJ103153T

 1-1/2

1

5

15

25

94
92
74

88
85
72

80
75
66

70
63
52

59
49
34

 44
24		 18

     43

100psig

200º F

CJ103201 CJ103201T

 CJ103203 CJ103203T

 2

 1

5

15

25

109
109
90

103
103
89

96
94
85

86
82
71

75
67
51

 61
45		 39     44 100psig

200º F

CJ103 Series Centrifugal Pumps, Plactic Impellers

Model

No.

HP

Stages



Lift FT.



Discharge Pressure PSI

Max Press PSI



Max Case Press

Max Liquid Temp

 10

 15

 20

25

30

35

40

45

50



 Capacity U.S. GPM

 1 Phase

 3 Phase
CJ103P031





 1/3



1



5

15

25

43
35
26

 35
24		 21



















26

100psig

160º F


CJ103P051



  CJ103P053

 1/2

1

5

15

25

45
41
31

45
41
29

44
38
27

36
24

 19









32

 100psig

160º F

CJ103P071

 CJ103P073

 3/4

1

5

15

25

69
64
49

68
62
48

64
57
45

57
46
31

42
28

 20







38

 100psig

160º F

CJ103P101

 CJ103P103

 1

1

5

15

25

67
61
47

65
59
46

64
58
45

62
55
43

51
41
23

 35







40

 100psig

160º F

CJ103P151

 CJ103P153

 1-1/2

1

5

15

25

68
62
48

67
61
47

66
60
46

65
59
45

63
55
41

 52
39		 31     44

100psig

160º F

Do not exceed the maximum case pressure and maximum liquid temperature rating of the pump . Performance shown for 60Hz models. 50 Hz models also available. Models with suffix T denotes TEFC motor. All other models utilize ODP motors. Suction and Discharge Tappings 1-1/2” X 1-1/4”[/custom-specifications]
[custom-features]

  • Non self-priming
  • Suction lifts up to 25' (8 m)
  • Low-lead brass or thermoplastic impellers
  • Capacities to 6,600 GPH (24,984 LPH)
  • Pressures to 45 PSI
  • Discharge can be rotated for horizontal or vertical positioning
    [/custom-features]

[custom-usage]

  • Booster service
  • Water circulation
  • Liquid transfer
  • Cooling systems
  • Jockey pump service
  • General service in farm, commercial and industrial applications

[/custom-usage]

[custom-documents]
CJ103 Single-Stage Centrifugal Pumps Data Sheet
[/custom-documents]
