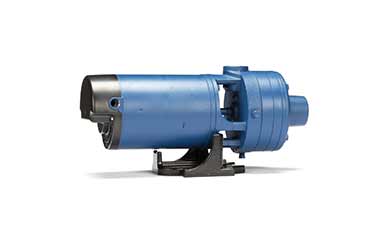

CJ101 Multi-Stage Centrifugal Pumps

Product Description

Single and multi stage CJ101 Centrifugalpumps are non-self priming with suction lifts up to 25 feet.Applications include booster service, water circulation, liquidtransfer, cooling systems, jockey pump service and generalservice in farm, commercial and industrial applications.

[custom-specifications]

CJ101 Series Centrifugal Pumps, Low Lead Brass Impellers

Model

No.

HP

Stages



Lift FT.



Discharge Pressure PSI

Max Press PSI



Max Case Press

Max Liquid Temp

10

20

30

40

50

60

70

80

90



Capacity U.S. GPM

1 Phase

3 Phase

CJ101B071AB

CJ101B071TAB

CJ101B073AB
CJ101B073TAB

3/4



2



5

15

25

39
38
31

34
33
29

29
26
23



21
18
12



5



















54

160psig



200°F



CJ101B101AB

CJ101B101TAB

CJ101B103AB
CJ101B103TAB

1

2

5

15

25

42
40
32

38
36
31

33
31
28

26
24
21

18
14









62

160psig

200°F

CJ101B151AB

CJ101B151TAB

CJ101B153AB
CJ101B153TAB

1-1/2

2

5

15

25

48
44
34

44
42
33

39
37
32

34
31
29

27
24
20

17
10







69

160psig

200°F

CJ101B201AB
CJ101B201TAB

CJ101B203AB
CJ101B203TAB

2

2

5

15

25

56
50
37

52
49
36

47
45
35

41
39
34

34
31
27

24
19







70

160psig

200°F

CJ101C201AB
CJ101C201TAB

CJ101C203AB
CJ101C203TAB

2

3

5

15

25

49
45
35

47
44
34

43
42
33

40
39
32

36
35
31

32
31
29

28
26
23

22
19
15

12

98

160psig

200°F

CJ101C301AB
CJ101C301TAB

CJ101C303AB
CJ101C303TAB

3

3

5

15

25

56
50
37

54
49
36



51
48
36

48
46
35

44
42
34

39
37
33

33
31
29

27
24
20

18

95

160psig

200°F

CJ101 Series Centrifugal Pumps, Plastic Impellers

Model

No.

HP

Stages



Lift FT.



Discharge Pressure PSI

Max Press PSI



Max Case Press

Max Liquid Temp

10

20

30

40

50

60

70

80

90



Capacity U.S. GPM

1 Phase

3 Phase

CJ101P071

CJ101P073

3/4



2



5

15

25

41
38
32

35
32
29

28
26
22

20
13



















54

160psig



160°F



CJ101P101

CJ101P103

1

2

5

15

25

45
42
35

40
39
33

35
33
30

28
26
22

20
15









62

160psig

160°F

CJ101P151

CJ101P153

1-1/2

2

5

15

25

54
48
37

50
46
35

44
42
33

38
35
28

28
23
17









69

160psig

160°F

CJ101P201

CJ101P203

2

2

5

15

25

55
49
37

52
47
36

47
45
33

41
39
32

34
30
26

23
17







70

160psig

160°F

CJ101D201

CJ101D203

2

3

5

15

25

44
36
26

44
36
26

44
36
24

41
36
24

37
35
24

32
30
22

28
25
20

22
20
15

16
11

98

160psig

160°F

CJ101D301T

CJ101D303

3

3

5

15

25

54
48
36

52
47
36

50
46
36

47
45
35

44
42
33

39
37
31

33
30
27

25
22
19

15
11

95

160psig

160°F

[/custom-specifications]

[custom-features]
  • Non self-priming
  • Capacities to 3,400 GPH (12,870 LPH)
  • Pressures to 95 PSI (620.5 kPa)
  • Multi-stage for high head
  • Suction lift to 25' (8 m)
  • Low-lead brass or thermoplastic impellers
    [/custom-features]

[custom-usage]

  • Booster service
  • Water circulation
  • Liquid transfer
  • Cooling systems
  • Jockey pump service
  • General service in farm, commercial and industrial applications

[/custom-usage]
