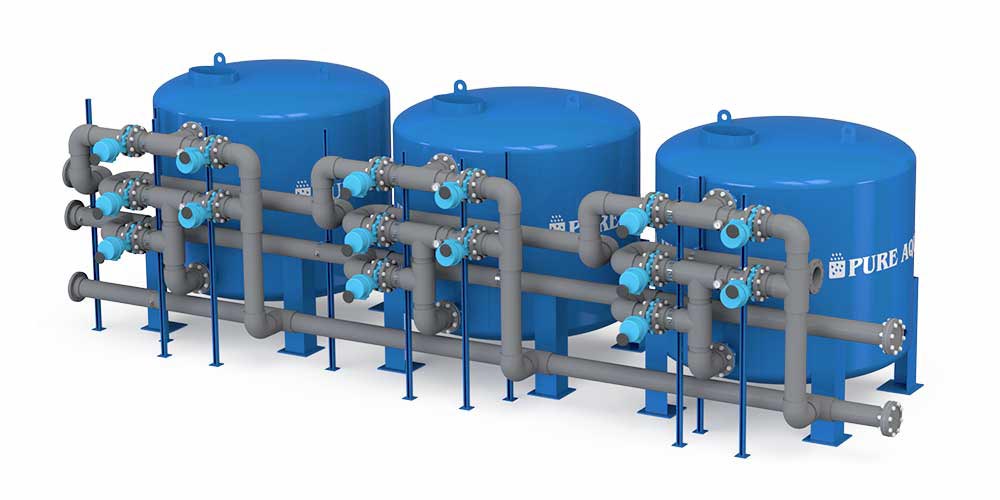

Industrial Steel Tank Water Media Filter MF-1000

Quality Systems at an exceptional value
Industrial Media Filters
Product Description

Pure Aqua, Inc. is an industrial water filter manufacturer, including being one of the leading producers of pressure filters.

Why a pressure filter? Pure Aqua pressure filters can be used in a variety of service conditions including, but not limited to industrial, municipal, and institutional applications. For problems with iron, suspended particles, sediment, turbidity, unpleasant tastes and odors, unwanted color, or the common contaminants of surface water, Pure Aqua’s pressure filters are the ideal purification solution.

Filter Media Types

  • Manganese Greensand media is treated siliceous material for treating water containing iron, manganese and hydrogen sulfide through oxidation.
  • Anthracite is recommended as a filter medium where additional silica in the water is not desirable and can remove lighter weight turbidity. Anthracite is typically used in applications where silica pick-up is undesireable.
  • ProSand is based on a rare natural mineral. Its unique properties radically improve the performance and cost of media filtration.
  • Calcite media is specially graded calcium carbonate compound for neutralizing acid with consistent dissolving rates for water treatment.
  • Filter AG is non-hydrous silicon dioxide with many advantages for the reduction of suspended matter.
  • Activated carbon medium is used to remove taste, odor, organic contaminants, and chlorine as well as being used in many drinking water applications.
  • Sand is the most common filter media. Generally, fine mesh sand is coupled with a course grain support bed to remove suspended solids and turbidity. Graded in various ranges, Pure Aqua sand can be used as filtration medium or underbedding depending on particle size and application.
  • Gravel has a highly spherical shape that promotes good flow and even distribution in support beds.
  • Multimedia is required when maximum quality water is required and unwanted sediment is too small to be removed by standard media. It consists of multiple layers of increasing grain size to remove sediment as small as 10 microns.

Advantages of Multimedia Filtration

  • Relatively inexpensive, no recurring cost of consumables
  • Proven process and most tested forms of water treatment
  • Systems are robust with no moving parts inside the tanks
  • Modular control valves designed for operational flexibility
  • Filtration media is inexpensive and long-lasting
  • Easily cleaned and maintained
  • Resistant to fouling (clogging)

Multimedia Filtration Operating Cycles

Service Cycle

Water flows downward through the media while solids accumulate in the media bed. The purified water passes through to downstream processes.

Backwash Cycle

When the filter begins to clog or when the head loss (pressure drop) through the bed increases, flow rates are reduced. To prevent degradation of water quality, the flow is reversed. This is directed by the control valve(s) to drain, carrying with it, the particulate matter that has built up during service. The required flow is specific to the media and is essential to proper cleaning of the media bed. For media filters, the backwash flow is always higher than the service flow rate.

[custom-specifications]
industrial water media filters mf 1000 series specifications

Model #

Flow Rate

Tank Size D”xH”

Media Qty (ft3)

Pipe Size

Approx. Weight (lbs)

Average

Peak

Backwash

Automatic

Manual

GPM

M3/H

GPM

M3/H

GPM

M3/H

Serv.

Drain

Multi Layers Filters: Anthracite, Sand and Gravel (Turbidity Removal)

MLF20-A

MLF20-M

22

5.0

44

9.9

33

7.4

20X54

6

1-1/2"

1-1/2"

823

MLF24-A

MLF24-M

31

7.1

63

14.3

47

10.7

24x54

8.5

1-1/2"

1-1/2"

1,200

MLF30-A

MLF30-M

49

11.2

98

22.3

74

16.7

30x54

13

2"

2"

1,800

MLF36-A

MLF36-M

71

16.1

141

32.1

106

24.1

36x60

19

2"

2"

2,684

MLF42-A

MLF42-M

96

21.9

192

43.7

144

32.8

42x60

26

3"

3"

3,806

MLF48-A

MLF48-M

126

28.6

251

57.1

189

42.9

48x60

34

3"

3"

4,913

MLF54-A

MLF54-M

159

36.1

318

72.3

239

54.2

54x60

43

4"

4"

6,565

MLF60-A

MLF60-M

196

44.6

393

89.2

294

66.9

60x60

53

4"

4"

8,455

MLF66-A

MLF66-M

238

54.0

475

108.0

356

81.0

66x60

64

4"

4"

10,095

MLF72-A

MLF72-M

283

64.3

565

128.5

424

96.4

72x60

76

4"

4"

12,615

MLF78-A

MLF78-M

332

75.4

664

150.8

498

113.1

78x60

89

6"

6"

14,320

MLF84-A

MLF84-M

385

87.5

770

174.9

577

131.2

84x60

103

6"

6"

17,280

Turbidex Filters: (Turbidity Removal)

TXF20-A

TXF20-M

22

5.0

44

9.9

33

7.4

20X54

6

1-1/2"

1-1/2"

688

TXF24-A

TXF24-M

31

7.1

63

14.3

47

10.7

24x54

8.5

1-1/2"

1-1/2"

969

TXF30-A

TXF30-M

49

11.2

98

22.3

74

16.7

30x54

13

2"

2"

1,438

TXF36-A

TXF36-M

71

16.1

141

32.1

106

24.1

36x60

19

2"

2"

2,156

TXF42-A

TXF42-M

96

21.9

192

43.7

144

32.8

42x60

26

3"

3"

3,081

TXF48-A

TXF48-M

126

28.6

251

57.1

189

42.9

48x60

34

3"

3"

3,988

TXF54-A

TXF54-M

159

36.1

318

72.3

239

54.2

54x60

43

4"

4"

5,438

TXF60-A

TXF60-M

196

44.6

393

89.2

294

66.9

60x60

53

4"

4"

7,063

TXF66-A

TXF66-M

238

54.0

475

108.0

356

81.0

66x60

64

4"

4"

8,375

TXF72-A

TXF72-M

283

64.3

565

128.5

424

96.4

72x60

76

4"

4"

10,625

TXF78-A

TXF78-M

332

75.4

664

150.8

498

113.1

78x60

89

6"

6"

11,938

TXF84-A

TXF84-M

385

87.5

770

174.9

577

131.2

84x60

103

6"

6"

14,563

AG Filters: Non Hydrous Silicon Dioxide (Turbidity Removal)

AGF20-A

AGF20-M

11

2.5

22

5.0

22

5.0

20X54

6

1-1/2"

1-1/2"

500

AGF24-A

AGF24-M

16

3.6

31

7.1

31

7.1

24x54

8.5

1-1/2"

1-1/2"

703

AGF30-A

AGF30-M

25

5.6

49

11.2

49

11.2

30x54

13

2"

2"

1,031

AGF36-A

AGF36-M

35

8.0

71

16.1

71

16.1

36x60

19

2"

2"

1,563

AGF42-A

AGF42-M

48

10.9

96

21.9

96

21.9

42x60

26

3"

3"

2,269

AGF48-A

AGF48-M

63

14.3

126

28.6

126

28.6

48x60

34

3"

3"

2,925

AGF54-A

AGF54-M

80

18.1

159

36.1

159

36.1

54x60

43

4"

4"

4,094

AGF60-A

AGF60-M

98

22.3

196

44.6

196

44.6

60x60

53

4"

4"

5,406

AGF66-A

AGF66-M

119

27.0

238

54.0

238

54.0

66x60

64

4"

4"

6,375

AGF72-A

AGF72-M

141

32.1

283

64.3

283

64.3

72x60

76

4"

4"

8,250

AGF78-A

AGF78-M

166

37.7

332

75.4

332

75.4

78x60

89

6"

6"

9,156

AGF84-A

AGF84-M

192

43.7

385

87.5

385

87.5

84x60

103

6"

6"

11,344

Activated Carbon Filters: Granular Form with High Degree of Porosity (Taste, Odor and Color Removal)

ACF20-A

ACF20-M

11

2.5

26

5.9

26

5.9

20X54

6

1-1/2"

1-1/2"

519

ACF24-A

ACF24-M

16

3.6

38

8.6

38

8.6

24x54

8.5

1-1/2"

1-1/2"

730

ACF30-A

ACF30-M

25

5.6

59

13.4

59

13.4

30x54

13

2"

2"

1,072

ACF36-A

ACF36-M

35

8.0

85

19.3

85

19.3

36x60

19

2"

2"

1,622

ACF42-A

ACF42-M

48

10.9

115

26.2

115

26.2

42x60

26

3"

3"

2,350

ACF48-A

ACF48-M

63

14.3

151

34.3

151

34.3

48x60

34

3"

3"

3,031

ACF54-A

ACF54-M

80

18.1

191

43.4

191

43.4

54x60

43

4"

4"

4,228

ACF60-A

ACF60-M

98

22.3

236

53.5

236

53.5

60x60

53

4"

4"

5,572

ACF66-A

ACF66-M

119

27.0

285

64.8

285

64.8

66x60

64

4"

4"

6,575

ACF72-A

ACF72-M

141

32.1

339

77.1

339

77.1

72x60

76

4"

4"

8,488

ACF78-A

ACF78-M

166

37.7

398

90.5

398

90.5

78x60

89

6"

6"

9,434

ACF84-A

ACF84-M

192

43.7

462

104.9

462

104.9

84x60

103

6"

6"

11,666

Model #

Flow Rate

Tank Size D”xH”

Media Qty (ft3)

Pipe Size

Approx. Weight (lbs)

Average

Peak

Backwash

Automatic

Manual

GPM

M3/H

GPM

M3/H

GPM

M3/H

Serv.

Drain

Greensand PLUS Filters: Enriched Quality with High Catalytic Capacity (Fe, Mn and H2S Reduction)

GSF20-A

GSF20-M

11

2.5

26

5.9

26

5.9

20X54

6

1-1/2"

1-1/2"

1,648

GSF24-A

GSF24-M

16

3.6

38

8.6

38

8.6

24x54

8.5

1-1/2"

1-1/2"

2,329

GSF30-A

GSF30-M

25

5.6

59

13.4

59

13.4

30x54

13

2"

2"

3,518

GSF36-A

GSF36-M

35

8.0

85

19.3

85

19.3

36x60

19

2"

2"

5,196

GSF42-A

GSF42-M

48

10.9

115

26.2

115

26.2

42x60

26

3"

3"

7,241

GSF48-A

GSF48-M

63

14.3

151

34.3

151

34.3

48x60

34

3"

3"

9,428

GSF54-A

GSF54-M

80

18.1

191

43.4

191

43.4

54x60

43

4"

4"

   12,318

GSF60-A

GSF60-M

98

22.3

236

53.5

236

53.5

60x60

53

4"

4"

   15,543

GSF66-A

GSF66-M

119

27.0

285

64.8

285

64.8

66x60

64

4"

4"

   18,615

GSF72-A

GSF72-M

141

32.1

339

77.1

339

77.1

72x60

76

4"

4"

   22,785

GSF78-A

GSF78-M

166

37.7

398

90.5

398

90.5

78x60

89

6"

6"

   26,178

GSF84-A

GSF84-M

192

43.7

462

104.9

462

104.9

84x60

103

6"

6"

   31,043

Birm Filters: Insoluble Catalyst (Fe and Mn Reduction)

BRF20-A

BRF20-M

11

2.5

26

5.9

26

5.9

20X54

6

1-1/2"

1-1/2"

643

BRF24-A

BRF24-M

16

3.6

38

8.6

38

8.6

24x54

8.5

1-1/2"

1-1/2"

905

BRF30-A

BRF30-M

25

5.6

59

13.4

59

13.4

30x54

13

2"

2"

1,340

BRF36-A

BRF36-M

35

8.0

85

19.3

85

19.3

36x60

19

2"

2"

2,014

BRF42-A

BRF42-M

48

10.9

115

26.2

115

26.2

42x60

26

3"

3"

2,886

BRF48-A

BRF48-M

63

14.3

151

34.3

151

34.3

48x60

34

3"

3"

3,733

BRF54-A

BRF54-M

80

18.1

191

43.4

191

43.4

54x60

43

4"

4"

    5,115

BRF60-A

BRF60-M

98

22.3

236

53.5

236

53.5

60x60

53

4"

4"

6,665

BRF66-A

BRF66-M

119

27.0

285

64.8

285

64.8

66x60

64

4"

4"

7,895

BRF72-A

BRF72-M

141

32.1

339

77.1

339

77.1

72x60

76

4"

4"

    10,055

BRF78-A

BRF78-M

166

37.7

398

90.5

398

90.5

78x60

89

6"

6"

    11,270

BRF84-A

BRF84-M

192

43.7

462

104.9

462

104.9

84x60

103

6"

6"

    13,790

Calcite Filters: (pH Neutralization)

CTF20-A

CTF20-M

11

2.5

26

5.9

26

5.9

20X54

6

1-1/2"

1-1/2"

1,063

CTF24-A

CTF24-M

16

3.6

38

8.6

38

8.6

24x54

8.5

1-1/2"

1-1/2"

1,500

CTF30-A

CTF30-M

25

5.6

59

13.4

59

13.4

30x54

13

2"

2"

2,250

CTF36-A

CTF36-M

35

8.0

85

19.3

85

19.3

36x60

19

2"

2"

3,344

CTF42-A

CTF42-M

48

10.9

115

26.2

115

26.2

42x60

26

3"

3"

   4,706

CTF48-A

CTF48-M

63

14.3

151

34.3

151

34.3

48x60

34

3"

3"

    6,113

CTF54-A

CTF54-M

80

18.1

191

43.4

191

43.4

54x60

43

4"

4"

8,125

CTF60-A

CTF60-M

98

22.3

236

53.5

236

53.5

60x60

53

4"

4"

    10,375

CTF66-A

CTF66-M

119

27.0

285

64.8

285

64.8

66x60

64

4"

4"

    12,375

CTF72-A

CTF72-M

141

32.1

339

77.1

339

77.1

72x60

76

4"

4"

    15,375

CTF78-A

CTF78-M

166

37.7

398

90.5

398

90.5

78x60

89

6"

6"

    17,500

CTF84-A

CTF84-M

192

43.7

462

104.9

462

104.9

84x60

103

6"

6"

    21,000

[/custom-specifications]

[custom-features]
industrial water media filters mf 1000 series features

Standard Features:

Available Options:
  • Carbon steel tank, rated at 100 PSI
  • Epoxy coated interior and primed exterior
  • 1/4" tubing between stager and valves
  • Electrical supply: 120V/1Ph/60Hz
  • Schedule 80 PVC face piping
  • PP/PVC 80 internal piping and distributor
  • Primer blue coating on tank exterior
  • Top loading port or manway
  • 1.5”-2” Noryl diaphragm valves or butterfly
    valves for 3’’ or larger
  • Digital stager for filters using diaphragm
    valves or PLC for butterfly valves
  • Air source not included
  • Vent and drain ports
  • High quality media
  • Duplex systems
  • Tanks according to ASME code
  • Stainless steel tanks
  • Fiberglass tanks
  • 240V/1ph/50Hz power supply
  • Vacuum breaker
  • Pressure relief valve
  • Inlet/outlet sample valves
  • Inlet/outlet pressure gauges
  • Differential pressure switch and gauge
  • Auxiliary switch for backwash pump start
  • Stainless steel internal piping and distributor
  • Stainless steel face piping
[/custom-features]
[custom-usage]

The ideal applications for a Media Filter include:
  • Water features (fountains, etc.)
  • Wastewater
  • Irrigation water
  • Potable (drinking) water
[/custom-usage]
[custom-documents]
Industrial Steel Tank Water Media Filter Data Sheet
 [/custom-documents]
[custom-360-view]

Here at Pure Aqua, Inc., we engineer and build all of our water treatment systems in-house.

Our turn-key water treatment systems are all pre-engineered using the latest CAD technology available.

This enables our teams to build and deliver treatment systems to our customers with quick turnaround times.

Many of our customers require custom engineered systems. These are typically built around similar core systems and thus allowing for improved turnaround times, even for one-off designs.

[/custom-360-view]
Models
Features
Applications
Docs
Videos
Industrial Media Filtration Systems - Epoxy Coated Steel Tanks | Made in USA | www.pureaqua.com
Industrial Media Filtration Systems - Epoxy Coated Steel Tanks | Made in USA | www.pureaqua.com
Duplex Multi Media Filtration Plant Kuwait 2 x 64 GPM | www.PureAqua.com
Duplex Multi Media Filtration Plant Kuwait 2 x 64 GPM | www.PureAqua.com
Duplex Multi Layer Filtration System Mexico 200 GPM | www.PureAqua.com
Duplex Multi Layer Filtration System Mexico 200 GPM | www.PureAqua.com
Commercial Multimedia Filtration Units Kuwait 1 x 32 GPM & 1 x 50 GPM | www.PureAqua.com
Commercial Multimedia Filtration Units Kuwait 1 x 32 GPM & 1 x 50 GPM | www.PureAqua.com
Activated Carbon Filters Algeria 2 x 120 GPM | www.PureAqua.com
Activated Carbon Filters Algeria 2 x 120 GPM | www.PureAqua.com
Join our subscribers for more videos
360 View
Reviews
(4 reviews) Write a Review
  • 5
    Water filtration tank

    Posted by Dennis Uvo on Mar 8th 2021

    I have been making use of it but I noticed that for a while now the pressure at the outlet is a little bit slow and this is as a result of clogged up particles. Now, I want to replace the component inside the tank what components should I make use of in each layer .

  • 5
    High quality!

    Posted by George. C. on Jan 15th 2020

    I have been dealing with Pure Aqua for over 10 years and they have proved to be very reliable with excellent products that always helped us in our projects. Thank you Pure Aqua and all the best.

  • 5
    High efficiency

    Posted by Mason. S. on Jul 22nd 2019

    Simple to operate, doesn't need much of maintenance. Thumbs-up!

  • 5
    Great system

    Posted by Kyle. A. on May 8th 2018

    We used this system as an automatic multi media filters in Kuwait. This is a great system when it comes to the filter operating to its full capacity.

360view:
https://cdn11.bigcommerce.com/s-1x0ys7yqwf/content/360Views/MF-1000-FLT72-10B-A.1.html
360image:
https://cdn11.bigcommerce.com/s-1x0ys7yqwf/product_images/uploaded_images/360view-wireframe-small.jpg
Related Products
Related Products
