A CIP in an RO Plant is necessary to prolong membrane life and maintain high productivity in your RO system. For effective CIP membrane cleaning, you will ensure there is enough time to complete the cleaning process. Stopping a CIP's duration may result in lower production and performance.

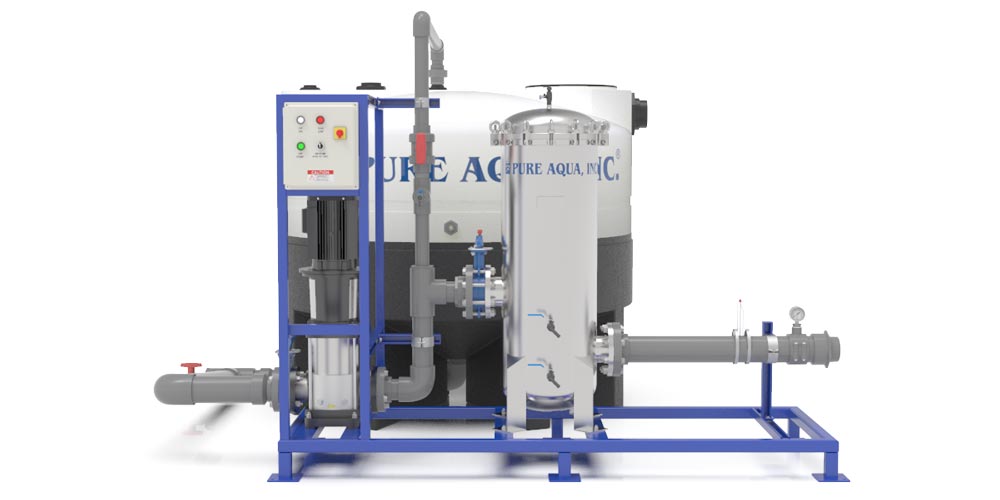

Membrane Cleaning Skid

The membrane cleaning skid is designed for manual operation through a local control box located on the skid. A chemical storage tank is mounted on its own stand and connected to the membrane cleaning skid with either hard PVC piping or quick disconnect fittings and flexible hoses. This gives the unit the ability to be mounted in a permanent location or totally portable if desired. The piping is schedule 80 PVC that is hydrostatically tested at the factory. The electrical enclosure is NEMA 4X. All membrane cleaning skid wiring is completed and tested before shipment.

Membrane Cleaning Chemicals

Acid and alkaline cleaning chemicals are most commonly used for membrane cleaning. Acid cleaners are designed to remove inorganic and iron deposits. Acid cleaning should be performed at a pH of about 2. Alkaline cleaners are designed for removal of biological matter, organic foulants, and silica deposits. Alkaline cleaning is performed at a pH of about 12.

Membrane Cleaning Process

Reverse Osmosis membrane elements can experience a decline in performance due to the accumulation of deposits on the membrane surface. Mineral scale, colloidal particles, biological matter, and insoluble organic compounds are the usual causes of membrane fouling. When production of a Reverse Osmosis system drops by at least 10 percent, or the differential pressure increases by 15 percent (over normal operating conditions), membrane cleaning should be performed using a membrane cleaning skid. The following is a summary of the design of Pure Aqua, Inc. membrane cleaning skids and cleaning chemicals. More detailed instructions are available in the Operating and Maintenance manual for the Pure Aqua, Inc. Cleaning Stations.

[custom-specifications]
membrane cleaning systems clean in place cip skids specifications

Model #

Qty of pressure
vessels to be
cleaned at a time

Tank
Capacity

Tank Location

CIP Motor HP

Shipping Weight (lbs)

Dimensions L"xW"xH"

60 Hz

50 Hz

CS4-1

1 (4")

50

Tank on skid

1

1

300

38x55x64

CS4-2

2 (4")

115

1.5

2

350

40x60x68

CS4-3

3 (4")

155

3

2

375

45x72x68

CS8-1

1 (8")

165

3

3

500

53x67x61

CS8-2

2 (8")

200

7.5

5

600

54x67x61

CS8-3

3 (8")

300

Tank off skid

7.5

7.5

700

78x96x68

CS8-4

4 (8")

310

10

7.5

800

83x91x67

CS8-5

5 (8")

500

15

10

900

88x102x96

CS8-6

6 (8")

550

15

15

980

110x112x75

For more information, please view/download our "Data Sheet"
