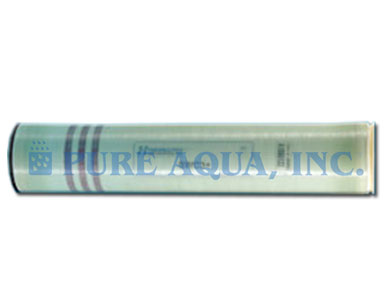

Hydranautics SWC4-LD Membrane

Quality parts at an exceptional value
Product Description

SWC4-LD offers unparalleled perfomance for your commercial or industrial water-treatment needs. Hydranautics has over two decades of experience in desalination and over 1.7 million cubic meters (461 million gallons per day) of seawater treated by their SWC (seawater composite) membranes. SWC seawater desalination membranes are available in high productivity 8-inch and 4-inch elements, all offering the highest levels of salt rejection and a consistently pure end product.

[custom-specifications]
SWC4-LD Specifications:
  • Permeate Flow: 6,500 gpd (24.6 m3/d)
  • Salt Rejection: 99.8% (99.7% minimum)
  • Boron Rejection (Typical): 93.0%
  • Configuration: Spiral Wound
  • Membrane Polymer: Composite Polyamide
  • Membrane Active Area: 400ft2 (37.1m2)
  • Feed Spacer: 34 mil (0.864 mm) with biostatic agent

The stated performance is initial (data taken after 30 minutes of operation), based on the following conditions:

  • 32,000 ppm NaCl
  • 800 psi (5.5 MPa) Applied Pressure
  • 77°F (25°C) Operating Temperature
  • 10% Permeate Recovery
  • 6.5 - 7.0 pH Range
[/custom-specifications]
[custom-features]
Standard Operating Limits:
  • Maximum Applied Pressure: 1200 psig (8.27 MPa)
  • Maximum Chlorine Concentration: < 0.1 PPM
  • Maximum Operating Temperature: 113°F (45°C)
  • pH Range, Continuous (Cleaning): 2-11 (1-13)
  • Maximum Feedwater Turbidity: 1.0 NTU
  • Maximum Feedwater SDI (15 mins): 5.0
  • Maximum Feed Flow: 75 GPM (17.0 m3/h)
  • Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1
  • Maximum Pressure Drop for Each Element: 10 psi

The limitations shown here are for general use. For specific projects, operating at more conservative values may ensure the best performance and longest life of the membrane. See Hydranautics Technical Bulletins for more detail on operation limits, cleaning pH, and cleaning temperatures.

[/custom-features]
[custom-usage]
  • Seawater Desalting
  • Broad Offering of Membrane Formulations Designed to Accommodate Varying Levels of Seawater Salinities Worldwide
[/custom-usage]
