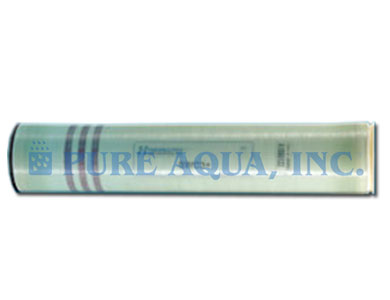

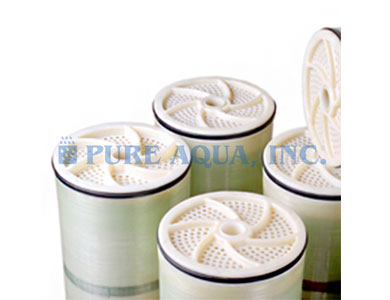

Hydranautics SWC6-MAX Membrane

Product Description

Hydranautics has over two decades of experience in desalination and over 1.7 million cubic meters (461 million gallons per day) of seawater treated by their SWC (seawater composite) membranes. SWC seawater desalination membranes are available in high productivity 8-inch and 4-inch elements, all offering the highest levels of salt rejection and a consistently pure end product. Membrane formulations are designed to accommodate varying levels of seawater salinities worldwide with reliable field-proven performance.

[custom-specifications]
SWC6-MAX Specifications
  Low Pressure: High Flow:
Permeate Flow: 6,000 gpd (25 m3/d) 13,200 gpd (50 m3/d)
Salt Rejection: 99.6% (99.4% min) 99.8% (99.7% min)
Boron Rejection (Typical): 83.0% 91.0%
Applied Pressure: 600 psi (4.1 MPa) 800 psi (5.4 MPa)
Configuration: Spiral Wound
Membrane Polymer: Composite Polyamide
Membrane Active Area: 440ft2 (40.8m2)

The stated performance is initial (data taken after 30 minutes of operation), based on the following low pressure conditions:

  • 32,000 ppm NaCl
  • 600 psi (4.1 Mpa) Applied Pressure
  • 77°F (25°C) Operating Temperature
  • 10% Permeate Recovery
  • 6.5 - 7.0 pH Range
[/custom-specifications]
[custom-features]
Standard Operating Limits:
  • Maximum Applied Pressure: 1200 psig (8.27 MPa)
  • Maximum Chlorine Concentration: < 0.1 PPM
  • Maximum Operating Temperature: 113°F (45°C)
  • pH Range, Continuous (Cleaning): 2-11 (1-13)
  • Maximum Feedwater Turbidity: 1.0 NTU
  • Maximum Feedwater SDI (15 mins): 5.0
  • Maximum Feed Flow: 75 GPM (17.0 m3/h)
  • Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1
  • Maximum Pressure Drop for Each Element: 10 psi

The limitations shown here are for general use. For specific projects, operating at more conservative values may ensure the best performance and longest life of the membrane. See Hydranautics Technical Bulletins for more detail on operation limits, cleaning pH, and cleaning temperatures.

[/custom-features]
[custom-usage]
  • Seawater Desalting
  • Broad Offering of Membrane Formulations Designed to Accommodate Varying Levels of Seawater Salinities Worldwide
[/custom-usage]
[custom-documents] [/custom-documents]
Models
Features
Applications
Docs
Videos
Reviews
(1 review) Write a Review
  • 5
    Produces extremely pure water. Excellent product!

    Posted by Fellismina C. on Mar 4th 2019

    Very durable and reliable
