PFH Multi-Cartridge Plastic Filter Housings

Quality Systems at an exceptional value
Product Description

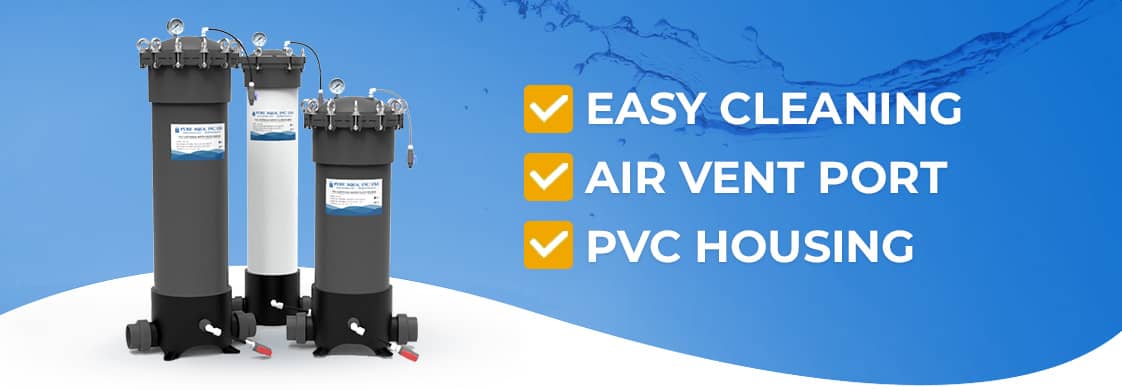

Multi-Cartridges Plastic Filter Housings

Pure Aqua offers a variety of filter housings sizes and styles in PVC material that assures maximum durability. PFH housings are ideal for most industrial/commercial applications including seawater and corrosive applications. PFH housings easily accept PA cartridges. With our wide range of models, options, and filter cartridges, these units can meet most requirements, including filtration of particulates, chlorine taste, odor and for inhibition of scale and corrosion.

Plastic Bag Filter Housings

Pure Aqua offers a variety of bag filter housings sizes and styles in PVC material that assures maximum durability. BFH housings are ideal for most industrial/commercial applications including seawater and corrosive applications. BFH housings easily accept style #1 and #2 standard bags. These housings can be used to filter chemicals compatible with PVC such as acids and alkaline fluids.

[custom-specifications]

PFH Multi-Cartridge Plastic Filter Housings

Multi-Cartridges Plastic Filter Housings
Model # Cartridges
Requirement
Pipe Size
(Socket)
Max. Flow
Rate (GPM)
Drain Size
(Socket)
Dimensions
(W”xH”)
Shipping
Weight (lbs)
PFH-5 (5) of 10” 2”  30 14.5x23 15
PFH-10 (5) of 20” 2” 60 - 14.5x33 26
PFH-15 (5) of 30”  2” 75 - 14.5x43 38
PFH-20 (5) of 40” 2” 100 - 14.5x53 50
PFH-18  (9) of 20”  3” 108 1/2” 18.5x33 40
PFH-27 (9) of 30” 3” 162 1/2” 18.5x43 55
PFH-36 (9) of 40”  3” 216 1/2” 18.5x53 70

Flow rates up to 216 GPM depend on cartridge type/length, solids content, viscosity, pressure drop, and degree of clarity desired. Pressure ratings of filter chambers depend upon the temperature of solutions being filtered.

Plastic Bag Filter Housings
Model # Bag
Style
Pipe Size
(Socket)
Max. Flow
Rate (GPM)
Dimensions
(W”xH”)
Shipping
Weight (lbs)
BFH-1 #1 2”  45 14.5x33 25
BFH-2 #2  2”  90 14.5x43 35

Flow rates up to 90 GPM depending upon style and length of bag filter, solids content, viscosity, pressure drop, and degree of clarity desired. Pressure ratings of filter chambers depend upon the temperature of solutions being filtered.

[/custom-specifications]

[custom-features]

PFH Multi-Cartridge Plastic Filter Housings

Multi-Cartridges Plastic Filter Housings

Capacity: 30 to 216 GPM

Standard Features
  • 2-3” connections
  • Removable cartridge posts for easy cleaning
  • PVC housings
  • 1/2” drain connection for PFH-18, PFH-27 or larger
  • Filtration for: silt, taste, odor, chlorine and sediment
  • Air vent port for use before start-up or draining
  • Accepts complete range of filter cartridges
  • Operating pressure: 90 psi (6 bars) maximum
  • Operating temperature: 41°-104° F (5°-40° C)

Available Options

  • Duplex systems
  • 304 or 316 stainless steel housings
  • Differential pressure switch & gauge
  • Inlet/outlet sample valves
  • Inlet/outlet pressure gauges
  • Skid mounting with plumbing
  • Drain valve
  • Vent valve
  • Sediment cartridges
  • Activated carbon cartridges
  • Bag Housings
  • Isolation valves

Plastic Bag Filter Housings

Capacity: 45 to 90 GPM

Standard Features
  • 2” connections
  • Removable bags for easy cleaning
  • PVC housings
  • Filtration for: silt and sediment
  • Air vent port for use before start-up or draining
  • Accepts standard style #1 or #2 bags
  • Operating pressure: 90 psi (6 bars) maximum
  • Operating temperature: 41°-104° F (5°-40° C)

Available Options

  • Duplex systems
  • 304 or 316 stainless steel housings
  • Differential pressure switch & gauge
  • Inlet/outlet sample valves
  • Inlet/outlet pressure gauges
  • Skid mounting with plumbing
  • Drain valve
  • Vent valve
  • Cartridge housings
  • Isolation valves

[/custom-features]

[custom-usage]

Multi-Cartridges Plastic Filter Housings

Applications
  • Pre-filtration for reverse osmosis systems
  • Pre-filtration for ion exchange and UV units
  • Commercial buildings
  • Food service
  • Car washes
  • Agriculture
  • Hospitals
  • Bottled water
  • Process water
  • Seawater filtration

Plastic Bag Filter Housings

Applications
  • Pre-filtration for reverse osmosis systems
  • Pre-filtration for ion exchange and UV units
  • Commercial buildings
  • Food service
  • Car washes
  • Agriculture
  • Hospitals
  • Bottled water
  • Process water
  • Seawater filtration

[/custom-usage]

[custom-documents] [/custom-documents]
[custom-360-view]

Here at Pure Aqua, Inc., we engineer and build all of our water treatment systems in-house.

Our turn-key water treatment systems are all pre-engineered using the latest CAD technology available.

This enables our teams to build and deliver treatment systems to our customers with quick turnaround times.

Many of our customers require custom engineered systems. These are typically built around similar core systems and thus allowing for improved turnaround times, even for one-off designs.


[/custom-360-view]
