Skid Mounted Water Treatment System 4500 GPD - Bolivia

Product Description

A quality reverse osmosis machine is designed to deliver high quality service by removing massive amounts of salt and other impurities from wells, lakes, rivers, and the ocean through a process called "reverse osmosis".The process of reverse osmosis deals with the use of a high pressure pump which applies extreme pressure to the high saline concentrated side of a semi-porous membrane, combatting a natural process called "Osmosis". Naturally, osmosis transports salt through a semi-porous membrane from a region with low saline concentration to a region with high saline concentration. Its goal is to gain an equal quantity of saline concentration on both sides of the membrane. With the use of the high pressure pump, reverse osmosis comes in to direct osmosis to the opposite direction. The pump applies high pressure to the highly concentrated saline side of the membrane, pushing salty water and other impurities across the membrane, only allowing water molecules to flow through. Salt and the impurities are rejected and later thrown into the drain on the concentrate side. In the end, we obtain purified water with 99% less dissolved salts on the permeate side of the membrane.

[custom-specifications]

Estuaries and river openings are places where brackish water can be found. This type of water lies in between fresh water and seawater. It’s not as clean as fresh water, yet not so highly concentrated in salt as seawater. Even if it has a mild salt concentration, it is still not encouraged for consumption.

[/custom-specifications]

[custom-features]

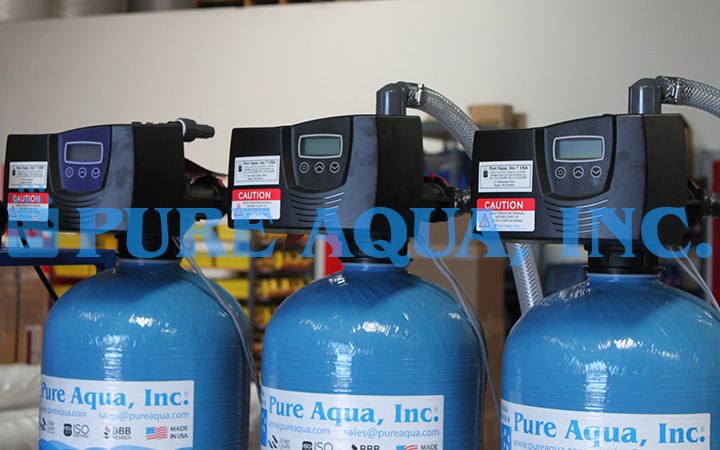

Pure Aqua takes pride in their customized, high quality water treatment systems. In April, a high quality, skid mounted water treatment system was shipped to Bolivia. Using a series of treatment methods, the water treatment system is capable of taking well water intakes of two thousand PPM TDS and producing four thousand five hundred gallons per day of fifteen to twenty PPM TDS of permeate. It accomplishes this using multimedia filtration, activated carbon filtration, chemical dosing, reverse osmosis, and ultraviolet sterilization.

[/custom-features]

[custom-usage]

  • Minimal civil work and construction
  • Small footprint
  • Plug and play installation

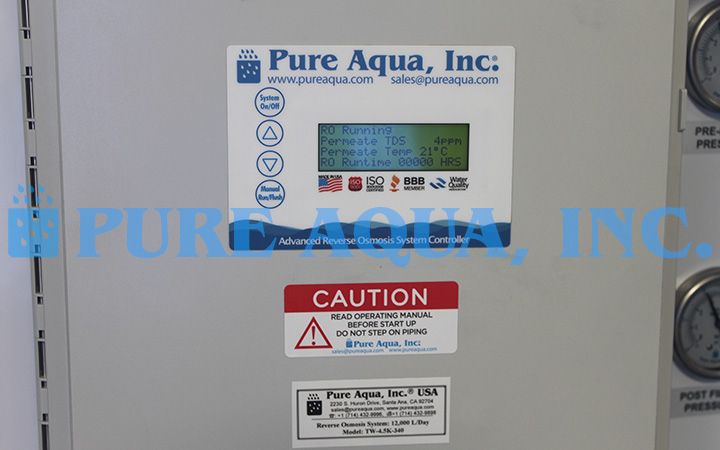

  • High-quality components (Grundfos pumps, DOW Filmtec membranes, Codeline vessels, Pure Aqua microprocessor control panel)
  • High recovery design
  • High rejection membranes
  • Low energy and chemical consumption

[/custom-usage]
[custom-documents]

[/custom-documents]

Models
Features
Applications
Docs
Videos
360 View
Reviews
(1 review) Write a Review
  • 5
    Great skid water treatment system. First-rate!

    Posted by Jason N. on Mar 13th 2019

    For my NSF certification this product has been doing good. No rejection for water quality.
