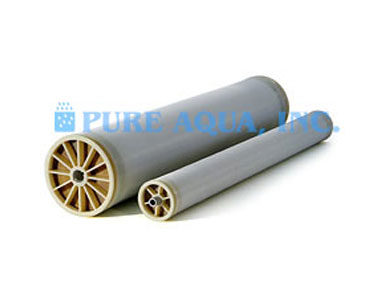

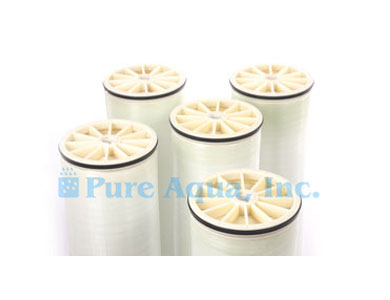

Toray TMH40A-1760 Membrane

Product Description
1. Membrane Type   Cross Linked Fully Aromatic Polyamide Composite
2. Test Conditions Feed Water Pressure Feed
Water Temperature Feed
Water Concentration
Recovery Rate
Feed Water pH
100 psi (0.69MPa)
77°F (25°C)
500 mg/l Nacl
15%
7
3. Minimum Salt Rejection   99.0%
4. Minimum Product Flow Rate   38,400gpd (145m³/d)

[custom-specifications]

Specifications:
Type DiameterInch Membrane Area ft² (m²) Salt Rejection% Product Flow Rate gpd(m³/d) Feed Spacer Thickness mil
TMH40A-1760 16” 1,760 (164) 99.3 48,000 (182) 28

[/custom-specifications][custom-features]

Operating Limits
  • Maximum Operating Pressure: 365psi (2.5 MPa)
  • Maximum Feed Water Temperature: 113°F (45°C)
  • Maximum Feed Water SDI15: 5
  • Feed Water Chlorine Concentration: <0.1ppm
  • Feed Water pH Range, Continuous Operation: 2-11
  • Feed Water pH Range, Chemical Cleaning: 1-12
  • Maximum Pressure Drop per Element: 15psi (0.10 MPa)
  • Maximum Pressure Drop per Vessel: 50psi (0.34 MPa)

[/custom-features][custom-usage]

  • High salinity brackish water applications
  • Low salinity brackish water applications
  • Sea water applications
  • High salinity sea water applications
