Brackish Reverse Osmosis Systems 5 X 1,500 GPD - UAE

Product Description

RO systems are powerful systems that are capable of taking out large amounts of salt, minerals, and other contaminants from water sources such as wells, rivers, and lakes. To master this mission, the systems take use of a popular technology known as "reverse osmosis". Reverse osmosis is ordered with the reversal of a natural process known as "osmosis". Osmosis is ordered by nature to transport salt through a semi-permeable membrane from an area of low solute concentration to an area of higher solute concentration in order to gain an even amount of solute concentration on both sides of the membrane. Reverse osmosis combats osmosis via a pressure pump which exerts high pressure to the highly concentrated side of the semi-permeable membrane, moving only water molecules through the small pores of the membrane while salts, organics, and other contaminants are denied passage. Potable water finally emerges and is gathered on the permeate side of the membrane, while salts and the other contaminants are thrown into a brine stream then into a drain.

Country: UAE

System/Product: Brackish Water Reverse Osmosis

Flow Rate: 5 X 1,500 GPD

Components & Brands:
- Microprocessor control panel

[custom-specifications]

Water Challenges: The characteristics of chemicals throughout groundwater is determined by the gases and minerals reacting with the water in its generally slow passage through the Earth’s crust. Extensive variations in groundwater quality are brought by many variables in various water sources. Dissolved minerals such as silica and sulphate produce corrosiveness among water which leads to the deterioration of water treatment equipment, steam boilers, water pipes, etc. Measures to avoid this from occurring involves utilizing active agents that work to minimize these unwanted effects and maintaining pH stability in treated water. If properly treated, the feed water will reach a balance where the additional of more dissolved substances will no longer occur.

[/custom-specifications]

[custom-features]

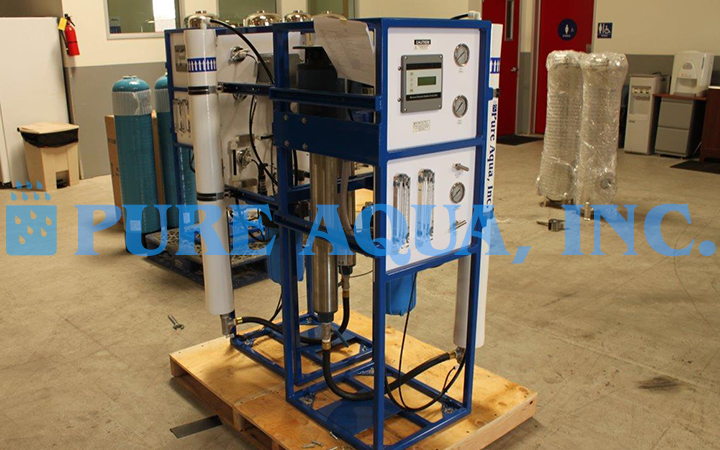

Pure Aqua supplied 10 units of commercial reverse osmosis systems for brackish water treatment (BWRO systems) for a major company in Dubai; capacities range between 2,500 GPD to 10,000GPD with microprocessor control panel.

[/custom-features]

[custom-usage]

  • Minimal civil work and construction
  • Small footprint
  • Plug and play installation
  • High-quality components (Grundfos pumps, DOW Filmtec membranes, Codeline vessels, Pure Aqua microprocessor control panel)
  • High recovery design
  • High rejection membranes
  • Low energy and chemical consumption

[/custom-usage]

[custom-documents]

Models
Features
Applications
Docs
Videos
Reviews
(1 review) Write a Review
  • 5
    Very good!

    Posted by Eliandro M. on Sep 25th 2017

    Small and reliable BWRO system.
