CAT Flush Pumps

Product Description

Like all standard plunger pumps, a flushed manifold pump is configured with an inlet and outlet port. However, on a flushed manifold pump, the manifold is also designed with an inlet and outlet flushing port to circulate liquid between the high pressure and low pressure seals to extend seal life and reduce pump maintenance. Cat Pumps offers a broad performance range of flushed manifold pumps from 3.0 to 240.0 gpm (15 to 908 lpm) and up to 10,000 psi (689 bar).

[custom-specifications]

Flushed Manifold Pumps

Brass and 304 Stainless Steel

Model Number	Maximum Flow		Maximum Pressure		RPM	HP
Model Number	gpm	lpm	psi	bar	RPM	HP
1810K	3.0	11.4	10,000	690	1500	20.5
1540EC	18.0	68.4	1,200	83	1100	14.8

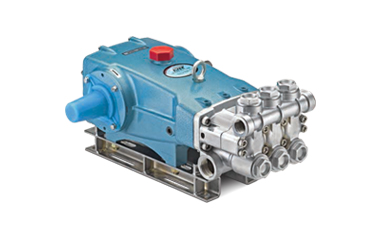

3520C	23.0	87.4	2,000	138	800	31.5
2520C	25.0	95.0	800	55	772	13.7
3535C	36.0	136.8	1,200	83	800	29.6

Model numbers ending in "C" indicates flushed cast manifold, "K" indicates flushed block manifold.

316 Stainless Steel

Model Number	Maximum Flow		Maximum Pressure		RPM	HP
Model Number	gpm	lpm	psi	bar	RPM	HP
311C	4.0	15.2	2,200	152	950	6.0

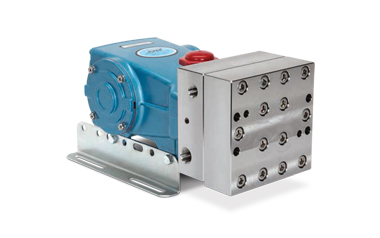

781K	4.5	17.1	5,000	345	1700	15.4
1051C	10.0	38.0	2,200	152	958	15.1
661C	10.0	38.0	3,000	207	1429	20.5
1861K	10.0	38.0	3,000	207	1429	20.5
3501C	10.0	38.0	5,000	345	915	34.2
3801K	10.0	38.0	5,000	345	915	34.2
7CP6171C	10.5	39.9	2,000	138	1450	10.6
7CP6111C	10.5	39.9	2,000	138	1750	14.4
1051C	12.0	45.4	1,800	124	1150	14.8
3511C	14.0	53.2	3,000	207	800	28.8
3811K	14.0	53.2	3,000	207	800	28.8
6811K	15.0	57.0	5,000	345	600	51.4
6801K	15.0	57.0	7,000	483	600	71.9
2831K	21.0	79.8	1,200	83	860	17.3
3521C	23.0	87.4	2,000	138	800	31.5
3821K	23.0	87.4	2,000	138	800	31.5
6821K	25.0	95.0	3,000	207	615	51.4
3531C	36.0	136.0	1,200	83	800	29.6
3831K	36.0	136.0	1,200	83	800	29.6
6831K	40.0	152.0	2,300	159	625	63.0
3541C	45.0	171.0	1,000	69	765	30.8
3841K	45.0	171.0	1,000	69	765	30.8
6841K	48.0	182.4	2,000	138	615	65.8
6861K	60.0	228.0	1,200	83	520	49.3

Model numbers ending in "C" indicates flushed cast manifold, "K" indicates flushed block manifold.

Duplex Stainless Steel

Model Number	Maximum Flow		Maximum Pressure		RPM	HP
Model Number	gpm	lpm	psi	bar	RPM	HP
152R060C	115.0	437.0	1,200	83	360	94.5
152R080C	200.0	760.0	1,200	83	355	164.4
152R100C	240.0	912.0	1,000	69	270	164.4
