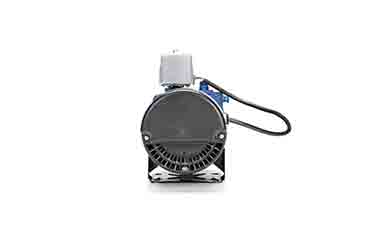

CPHS Shallow Well Jet Pump Series

Quality parts at an exceptional value
Product Description

These pumps provide higher single stage capacities and pressures; depths to 150 feet, capacities to 1800 GPH and as much as 90 pound pressure.

[custom-specifications]

CPHS SHALLOW WELL

Available in 1/2, 3/4 and 1 HP. Includes: pump, motor, pressure switch and shallow well ejector.

CPH CONVERTIBLE

Available in 1/2, 3/4 and 1 HP. Includes: pump, motor and pressure switch. Order ejector, control package and pressure gauge separately.
* Add “R” to end of model number to include 134349 control package with pump.

CPJS AND CPHS SHALLOW WELL PERFORMANCE WITH SHALLOW WELL EJECTORS



Model

No.



HP



Ejector* Assembly



Suction

Lift Ft.

Discharge Pressures (PSI)



Suction & Discharge

Pressure Switch Setting

Shut Off Pressure PSI

Pump Shipping Weight

20

30

40

50

60

CAPACITY - U.S. GALLONS PER

MINUTE



CPJ03SB



1/3



SW03E-1626

5

15

25

11.3

8.7

5.3

10.7

8.5

5.3

9.5

7.8

5.2

6.7

5.3

4.2





1-1/4”   X 3/4”



30-50

74

69

65



49

CPJ05SB CPH05S



1/2



SW05E-1630

5

15

25

17.2

12.8

7.7

16.8

12.7

7.5

14.8

12.2

7.2

10.0

7.7

5.3





1-1/4”   X 3/4”



30-50

69

64

60

50

43

CPJ07SB CPH07S



3/4



SW07E-1432

5

15

25

19.8

15.5

9.8

19.5

15.2

9.5

19.2

14.8

9.3

18.0

14.2

8.8





1-1/4”   X 1”



30-50

65

60

55



58

CPJ10SB CPH10S



1



SW10E-1334

5

15

25

23.7

18.3

11.7

23.5

18.3

11.7

23.3

18.2

11.5

23.0

18.0

11.3





1-1/4”   X 1”



30-50

70

65

58

62

53



CPJ15S



1-1/2



SW15E-1238

5

15

25

30.0

24.0

15.0

29.8

23.8

15.0

29.8

23.7

15.0

29.8

23.5

14.8

23.3

18.7

8.0



1-1/4”   X 1”



30-50

77

72

63



72

CPJ AND CPH SHALLOW WELL CAPACITIES WITH CONVERTIBLE EJECTOR

Model

No.



HP

Ejector

Assembly

Suct. Lift Ft.

 Discharge Pressure (PSI)

Suction & Discharge

Pressure

Switch

Setting

Shut  Off

Pressure

PSI

Pump

Ship

Weight

20

30

40

50

60

70

80

90

CAPACITY - U.S. GALLONS PER MINUTE



CPJ05B CPH05

CPH05R†



1/2



DW40E-1730

5

15

25

14.8

11.8

7.3

14.5

11.3

7.2

13.2

11.2

7.0

10.0

8.3

6.5

6.7

5.0

3.3









1-1/4”  X 3/4”



30-50

76

72

67



46

38



DW40E-1828

5

15

25

12.0

9.0

5.3

11.5

8.8

5.3

11.3

8.7

5.2

10.2

8.5

5.2

7.8

6.7

5.0

5.0

4.2

3.3







1-1/4”  X 3/4”



30-50

90

85

80



CPJ07B CPH07

CPH07R†



3/4



DW40E-1630

5

15

25

16.0

12.5

8.3

15.7

12.3

8.3

15.5

12.3

8.2

15.0

12.2

8.0

10.3

7.0

4.2









1-1/4”  X 1”



30-50

75

72

66



56



DW40E-1726

5

15

25

10.2

8.0

4.8

10.0

7.5

4.7

9.7

7.3

4.5

9.5

7.3

4.3

9.3

7.2

4.2

9.2

7.2

4.2

7.5

6.7

4.2

5.7

5.0

3.3



1-1/4”  X 1”



30-50

120

115

110



CPJ10B CPH10

CPH10R†



1



DW40E-1634

5

15

25

20.8

16.7

11.7

20.8

16.7

11.5

20.5

16.3

11.3

20.3

16.2

11.2

15.8

13.0

9.3









1-1/4”  X 1”



30-50

80

75

70



58

49



DW40E-1828

5

15

25

12.2

9.5

5.7

11.7

9.2

5.5

11.7

9.0

5.3

11.3

8.8

5.2

11.2

8.8

5.0

11.2

8.8

5.0

10.8

8.7

5.0

8.0

6.7

5.0



1-1/4’ x 1”



30-50

125

120

115



CPJ15



1-1/2



DW40E-1736

5

15

25

23.8

18.0

11.0

23.3

17.8

10.7

23.3

17.5

10.7

23.0

17.3

10.5

18.7

16.3

10.3

13.8

11.7

8.3

8.3

6.0

2.0





1-1/4” x 1”



30-50

93

88

82



66



[/custom-specifications]

[custom-features]

High Tensile Gray Iron Pump Bodies

Large water cavities provide fast, easy priming. Separate priming ports enable quick water fill and the fast evacuation of air. Separate 1/4” tappings are provided for the convenient mounting of pressure/vacuum gauges and the pressure switch, and for pump draining.

Buna-n Quadraseal

Reusable — provides a positive seal between the pump case and motor bracket.

Molded Diffusers

Corrosion and abrasion resistant, provide precision alignment with the impeller for maximum performance. The snapin diffuser design uses no bolts and is held in place by compression.

Impellers —

Precision balanced, these impellers are ultra-smooth for high efficiency. 1/3 thru 1 HP CPJ, CPH, and EK models feature molded thermoplastic impellers. 1-1/2 HP CPJ models feature brass impellers.

Pipe Plugs and Priming Plugs

Coated with a non-hardening, non-toxic, non-corrosive material which allows for easy removal even after the pump has been in service for years.

Standard Shaft Seal

Silicon carbide face is self-adjusting throughout the seal life.One size fits all models.

CPH and EK Patented Uni-frame Motor Bracket

Unique to the water systems industry — designed to accept any NEMA J motor if motor replacement is ever necessary.

Automatic Overload

Senses both start and run winding heat to ensure complete winding protection.
