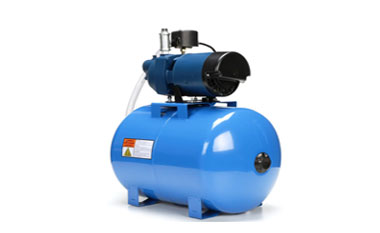

EK Shallow Well Jet Pump Tank Mounted System

Quality parts at an exceptional value
Product Description

Includes: Pump, motor, pressure switch, ejector, pressure tank and connection fittings from pump to tank.

[custom-specifications]



Model



HP



Tank Type

Approximate Dimensions- Inches





Ship Wt.

L

W

H

EK05SAT25H

1/2

Horizontal

24.5

17.25

33.5

76 lbs

EK07SAT44H

3/4

Horizontal

24.5

17.25

33.5

76 lbs

[/custom-specifications]
[custom-features]

High Tensile Gray Iron Pump Bodies

Large water cavities provide fast, easy priming. Separate priming ports enable quick water fill and the fast evacuation of air. Separate 1/4” tappings are provided for the convenient mounting of pressure/vacuum gauges and the pressure switch, and for pump draining.

Buna-n Quadraseal

Reusable — provides a positive seal between the pump case and motor bracket.

Molded Diffusers

Corrosion and abrasion resistant, provide precision alignment with the impeller for maximum performance. The snapin diffuser design uses no bolts and is held in place by compression.

Impellers —

Precision balanced, these impellers are ultra-smooth for high efficiency. 1/3 thru 1 HP CPJ, CPH, and EK models feature molded thermoplastic impellers. 1-1/2 HP CPJ models feature brass impellers.

Pipe Plugs and Priming Plugs

Coated with a non-hardening, non-toxic, non-corrosive material which allows for easy removal even after the pump has been in service for years.

Standard Shaft Seal

Silicon carbide face is self-adjusting throughout the seal life.One size fits all models.

CPH and EK Patented Uni-frame Motor Bracket

Unique to the water systems industry — designed to accept any NEMA J motor if motor replacement is ever necessary.

Automatic Overload

Senses both start and run winding heat to ensure complete winding protection.

[/custom-features]

[custom-usage]

  • Deep well

[/custom-usage]

[custom-documents] [/custom-documents]
Models
Features
Applications
Docs
Videos
Reviews
(1 review) Write a Review
  • 5
    Great compact design

    Posted by Moner F. on Nov 7th 2018

    Quality fresh water production!
