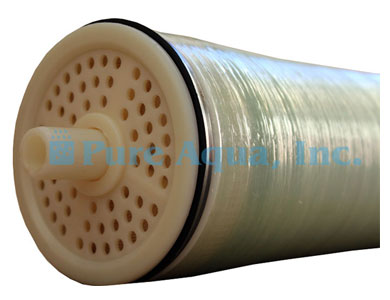

Hydranautics ESPA-4014 Membrane

Quality parts at an exceptional value
Product Description

ESPA® (Energy Saving Polyamide) elements achieve high flux/lower pressure without compromising standards for high rejection. Since its introduction in the late 1990s, the ESPA® membrane has gained wide acceptance in the water treatment industry due to the significant operational cost savings associated with their use. 4” and 8” configurations available.

ESPA-4014 - One of the best membranes in the industry. The growing family of ESPA (Energy-Saving Polyamide) RO membranes continue to meet the ever-increasing demands of the water treatment industry. Industrial users worldwide have made ESPA their first choice for high productivity and salt rejection.

[custom-specifications]
ESPA-4014 Specifications:
  • Permeate Flow: 500 gpd (1.9 m3)
  • Salt Rejection: 99.4% (98.0% minimum)
  • Configuration: Spiral Wound
  • Membrane Polymer: Composite Polyamide
  • Membrane Active Area: 16.9ft2

Elements are wet tested for quality assurance using the following conditions (Data taken after 30 minutes of operation):

  • 1500 PPM NaCl solution
  • 150 psi (1.03 MPa) Applied Pressure
  • 77°F (25°C) Operating Temperature
  • 10% Permeate Recovery
  • 6.5 – 7.0 pH Range
[/custom-specifications]
[custom-features]
Standard Operating Limits:
  • Maximum Applied Pressure: 300 psig (2.1 MPa)
  • Maximum Chlorine Concentration: < 0.1 PPM
  • Maximum Operating Temperature: 113° F (45°C)
  • pH Range; Continuous (Cleaning): 3.0 –10.0
  • Maximum Feedwater Turbidity: 1.0 NTU
  • Maximum Feedwater SDI (15 mins): 4.0
  • Maximum Feed Flow: 12 GPM (45.4 l/m)
  • Minimum Ratio of Concentrate to Permeate Flow for any element: 5:1
  • Maximum Pressure Drop for Each Element: 10 psi

The limitations shown here are for general use. For specific projects, operating at more conservative values may ensure the best performance and longest life of the membrane. See Hydranautics Technical Bulletins for more detail on operation limits, cleaning pH, and cleaning temperatures.

[/custom-features]
[custom-usage]
  • Municipal Potable and Wastewater Plants
  • Bottling Operation
  • Light Industrial
[/custom-usage]
