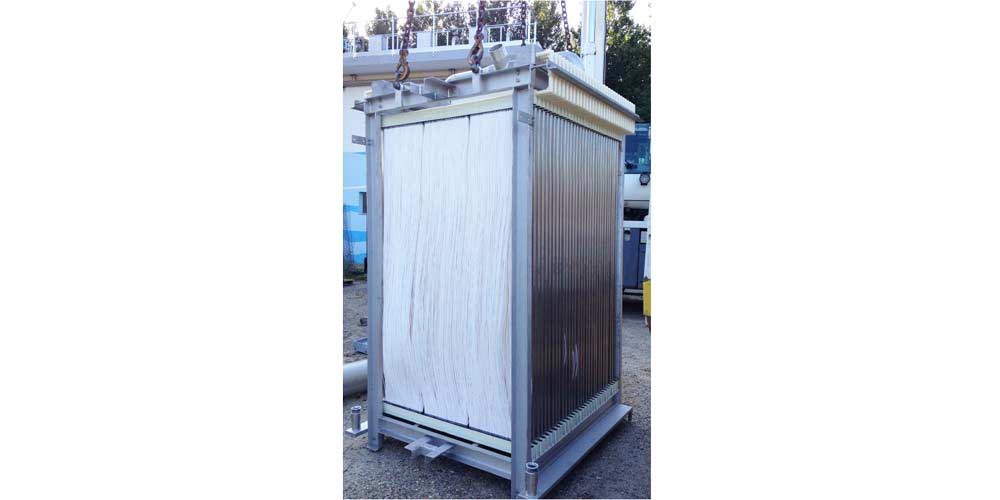

Hydranautics HYDRAsub HSM30-ES-HSE15

Product Description

Hydranautics HYDRAsub HSM30-ES-HSE15 Is an immersed module designed with hollow PVDF fiber technology for utilizations demanding MBR solutions. To produce higher quality water, Hydranautics has built modules that outperform traditional activated sludge treatment processes. The higher quality water is more ideal for other treatment methods such as RO purification and decreases the footprint significantly by eliminating the sedimentation tank and on a higher MLSS. MBR technology are generally utilized in municipal and industrial applications, including textile, food & beverage, and chemical processes.

[custom-specifications]

  HYDRAsub® - MBR HSM30 w/ HSE 15




Module
Specifications
Configuration:
Fiber Orientation:
Filtrate Flow:
Membrane Polymer:
Pore Size (nominal):
Number of Elements in Module:
Nominal Membrane Area per Module:
Permeate Connections:
Air Connections:
Guide Pipe Connections:
Submerged Membrane
Vertical
Bi-directional
Polyvinylidene Flouride (PVDF)
0.4 µm
2 (15 m² each)
322 ft² (30 m²)
(2)- 2” MNPT
(2)- 1 1/2” MNPT
(2)- to fit 2.5” pipes
Model Typical Dry Weight Typical Wet Weight
HSM30-ES-HSE15 205 lbs (93 kg) 295 lbs (134 kg)
HSM30-ES15-316 207 lbs (94 kg) 299 lbs (136 kg)

[/custom-specifications]

[custom-features]

Features
  • Maximum Trans Membrane Pressure (Vacuum):-6 psig (-0.41 bar)
  • Maximum Backwash Trans Membrane Pressure:2 psig (0.14 bar)
  • Maximum Instantaneous Chlorine Concentration:5,000 ppma
  • Maximum Chlorine Tolerance:742,000 ppm-hrsb
  • MLSS Range:8,000 - 12,000 mg/Lc
  • Operating Temperature Range:41 - 104°F (5 - 40° C)
  • Feed Water pH Range:6.0 - 8.0
  • Cleaning pH Range:1.0 - 11.0
  • Operating Mode:Outside to Inside

[/custom-features]

[custom-usage]

  • Hydranautics HYDRAsub HSM30-ES-HSE15Is delivers high quality MBR solutions for municipal and industrial wastewater projects.

[/custom-usage]

[custom-documents]

Hydranautics HYDRAsub HSM30-ES-HSE15 Data Sheet

[/custom-documents]

Models
Features
Applications
Docs
Videos
360 View
Reviews
(1 review) Write a Review
  • 5
    Service was exceptional

    Posted by Esteban L. on Jul 8th 2019

    I have been a faithful user of hydranautics membranes for many years due to long-term consistency. Terrific products
