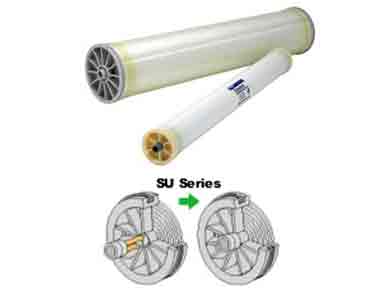

Toray HFU-1020AN Membrane

Quality parts at an exceptional value
Product Description

TORAY 's special PVDF (polyvinylidene fluoride) spinning method allows for greater chemical and mechanical strength without breaking the fibre. The special membrane structure of TORAY and the Outside-to-Inside flow direction allow for longer-term higher flux activity.

Specifications
Nominal MWCO Membrane Area Membrane Surface Area
[Outer Surface]
Design Flux
150,000 Da 0.01 micorn 29 m²
(312 ft²)
3.2 - 1.1 m³/h
Operating Limits
Min. Feed Temperature Max. Feed Temperature Max. Feed Pressure Feed pH Range Operation Feed pH Range Cleaning
0°C 40°C 300 kPa 1 - 10 0 - 12
Dimension
Length Module Diameter Weight (Full of water) Weight (After draing) Connection Filtrate Outlet Connection Air Outlet Connection Raw Water/Air Inlet
1,120 mm 216 mm 60 kg 40 kg 80A 65A 80A

[custom-specifications]

Toray HFU-1020AN Membrane

[/custom-specifications]

[custom-features]
  • Simple operating control
  • Low energy consumption
  • High efficiency in organic substance removal
[/custom-features]
[custom-usage]
  • Drinking Water Produciton
  • Industrial Water Treatment
  • Seawater Desalination (for RO pretreatment)
  • Waste Tertiary Treatment
[/custom-usage]
[custom-documents]
[/custom-documents]
