Ultrafiltration System 28,800 GPD - Colombia

(1 review)
Product Description

Application: Tertiary Treatment of Secondary Wastewater (Treated/Clarified Sewage)

This is model UF-1 from our UF Series.

  • Low pressure switch
  • Powder coated steel frame
  • Automatic Screen filter
  • Microprocessor based control panel
  • Glycerin-filled 316 SS pressure gauges
  • Product meter
  • Hollow Fiber UF Module
  • 460V/3Ph/60Hz power supply

[custom-specifications]

Water Challenges: Tertiary treatment of secondary wastewater is performed for the purposes of ensuring additional safety of the ecosystem once the wastewater is discharged into natural water sources such as the ocean, lakes, and rivers. Furthermore, it is done in order to provide complete purification of the wastewater for reuse in applications like irrigation, artificial lakes, and drinking water. Sewage contains some of the highest concentration of contaminants and requires a multi-stage process in order for effective water treatment. The first step is the utilization of ultrafiltration which acts a pre-treatment for further purification with other water treatment systems. Ultrafiltration accomplishes a 95% recovery rate that can be successfully done to purify wastewater for reuse.

[/custom-specifications]

[custom-features]

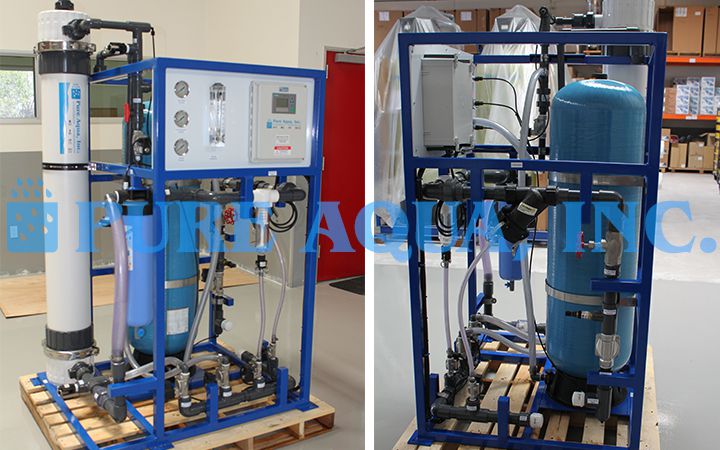

Applied Solution: Pure Aqua, Inc. designs and manufactures water treatment systems in addition to ultrafiltration systems. This Ultrafiltration System was manufactured and delivered to Colombia. The ultrafiltration system was designed for tertiary treatment of secondary wastewater (treated/clarified sewage). The 15 gpm system was made up of one UF module; major components consisted of a backwash tank, automatic screen filter, and a microprocessor control panel.

[/custom-features]

[custom-usage]

  • Superior filtration performance with high flux
  • Very small nominal pore diameter (0.03 µm)
  • Efficiently gets rid of bacteria and viruses
  • Periodically back washed and air scoured to enhance overall performance and casting off the fouling layer to extend working life
  • Low fouling membrane modules
  • UF Outside-In or Inside-Out Configuration lets in reduced plugging and greater solids loading
  • Basic, vertical, modular plan approves low cost, compact systems
  • Effective membrane cleaning has a high chemical resistance and temperature tolerance

[/custom-usage]

[custom-documents]

Ultrafiltration System 28,800 GPD - Colombia - Case Study

[/custom-documents]
