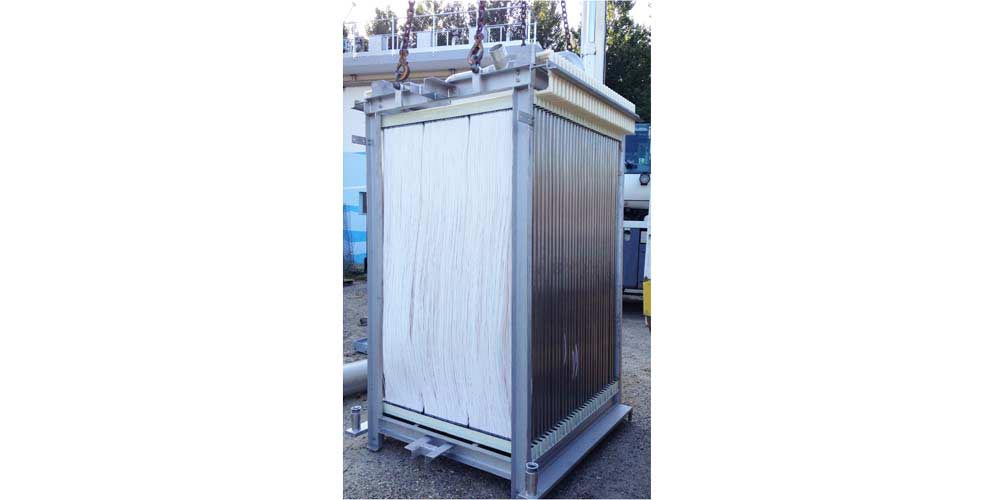

HYDRAsub MAX HSMM2400-ES Membrane

Quality parts at an exceptional value
Product Description

HYDRAsub MAX HSMM2400-ES Membrane has engineered and licensed a special diffuser system to provide controlled aeration installed into the stainless steel frame. These new applications are best suited for applications regarding industrial and municipal wastewater.

[custom-specifications]

  HYDRAsub®MAX- MBR HSMM2400-ES




Module
Specifications
Configuration:
Fiber Orientation:
Filtrate Flow:
Membrane Polymer:
Pore Size (nominal):
Number of Elements in Module:
Nominal Membrane Area per Module:
Permeate Connections:
Air Connections:
Guide Pipe Connections:
Typical Module Dry Weight:
Typical Module Wet Weight:
Submerged Membrane
Vertical
Bi-directional
Polyvinylidene Flouride (PVDF)
0.5 μm
60 (40 m² each)
25824 ft2 (2400 m²)
(4)- 3” MNPT
(4)- 2” MNPT
(2)- To fit 3” pipe
3636 lbs (1652 kg)
5634 lbs (2555 kg)

Typical
Process
Conditions
Operating Filtrate Flux:
Peak Operating Flux:
Chemically Enhanced Backwash (CEB) Flux:
CEB Chemicals:
Clean In Place (CIP) Flux:
CIP Chemicals:
4-20 gfd (7-34 lmh)
30 gfd (51 lmh)
2.4 gfd (4 lmh)
NaOCld
2.4 gfd (4 lmh)
NaOCl or Citric Acidd

[/custom-specifications]

[custom-features]

Features
  • Maximum Trans Membrane Pressure (Vacuum): -6 psig (-0.41 bar)
  • Maximum Backwash Trans Membrane Pressure: 2 psig (0.14 bar)
  • Maximum Instantaneous Chlorine Concentration: 5,000 ppma
  • Maximum Chlorine Tolerance: 742,000 ppm-hrsb
  • MLSS Range: 8,000 - 12,000 mg/Lc
  • Operating Temperature Range: 41 - 104°F (5 - 40° C)
  • Feed Water pH Range: 6.0 - 8.0
  • Cleaning pH Range: 1.0 - 11.0
  • Operating Mode: Outside to Inside

[/custom-features]

[custom-usage]

  • HYDRAsub MAX HSMM2400-ES Membrane utilzies cutting-edge features to further improve the working processes of industrial and municipal wastewater projects.
