Industrial Nanofiltration NF Systems NF-500

Quality Systems at an exceptional value
Product Description

Nanofiltration systems offer industrial plants with additional benefits that reverse osmosis fails to provide. Such advantages include the consumption of less water, more efficient in removing hardness (suspended solids) than RO, including foul taste and smell problems.

Industrial nanofiltration systems are designed with advanced nanotechnology for the purposes of improving the capability of removing extremely high TDS levels from water. These NF systems are built-in with elastic features that have fewer maintenance requirements than RO systems and water softeners, including being less prone to fouling.

Industrial users favor the utilization of nanofiltration systems over RO systems due to its greater capacity in allowing the passage of designed minerals and preventing the passage of unwanted organic compounds. This feature makes nanofiltration ideal in treating water sources that contain high degrees of bivalent ions such as calcium, magnesium, uranium and radium.

NF systems also have earned its reputation as being the most efficient hardness removing membrane technology on the market through targeting and eliminating hardness from water. Just as reverse osmosis systems are efficient in eradicating color, viruses, bacteria, and organic substances, nanofiltration provides the same productivity, along with removing other impurities such as pesticides, and microorganisms. All of these qualities result in the production of high-quality freshwater at a lower cost due to nanofiltration systems using less energy than RO systems.

Pure Aqua manufactures and distributes a complete category of tailor-made nanofiltration systems, which come equipped with advanced 3D computer modeling and process design software for precise and custom-made solutions.

[custom-specifications]

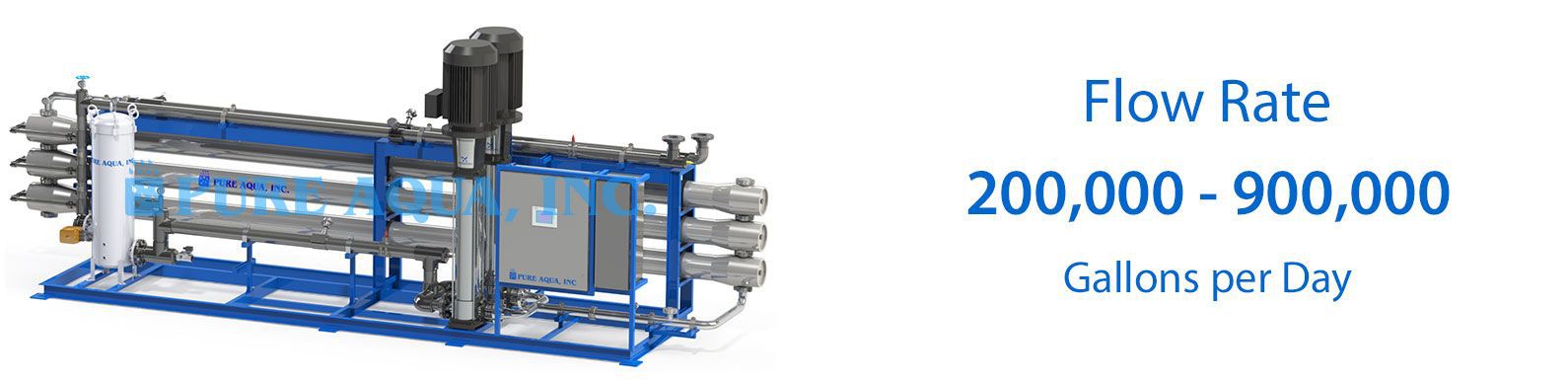

Industrial Nanofiltration NF Systems NF-500
Operation Specifications
  • Max. feed water temperature: 42°C
  • Feed water pressure: 20 to 50 psi
  • Operating pressure: 80 to 125 psi
  • H2S must be removed
  • Turbidity should be removed
  • Max. Iron content: 0.05 ppm
  • Feed water TDS: 0-1,000 ppm
  • Equipment upgrade for higher TDS values
  • Hardness over 1 GPG requires antiscalant dosing
  • pH tolerance range: 3-11
  • Max. Silica Tolerance: 60 ppm @ 60% recovery
  • Operate at higher TDS by lowering recovery
Industrial Nanofiltration NF Systems NF-500

Model Number

Permeate Flow Rate

Quantity of Membranes

Motor Rating
at 1,000 ppm
60Hz (hp)

Approx. Weight (lbs)

Dimensions L"xW"xH"

GPD

M3/D

NF-190K-4780

190,000

719

28

25

4,500

350x72x80

NF-213K-5680

213,750

809

30

25

4,500

300x72x80

NF-256K-6680

256,500

971

36

25

4,900

300x72x80

NF-304K-7680

304,000

1,151

42

30

5,200

300x72x90

NF-342K-8680

342,000

1,294

48

30

5,750

300x72x90

NF-389K-9680

389,500

1,474

54

40

6,250

300x72x90

NF-427K-10680

427,500

1,618

60

40

7,500

300x72x90

NF-475K-11680

475,000

1,798

66

50

8,500

300x72x80

NF-522K-11780

522,500

1,978

77

50

8,750

350x72x90

NF-570K-13780

570,000

2,157

91

60

9,250

350x84x92

NF-665K-14780

665,000

2,517

98

60

9,650

350x84x94

NF-760K-16780

760,000

2,877

112

75

10,200

350x84x96

NF-855K-18780

855,000

3,236

126

75

10,650

350x84x98

For more information, please view/download our "Data Sheet"

[/custom-specifications]

[custom-features]

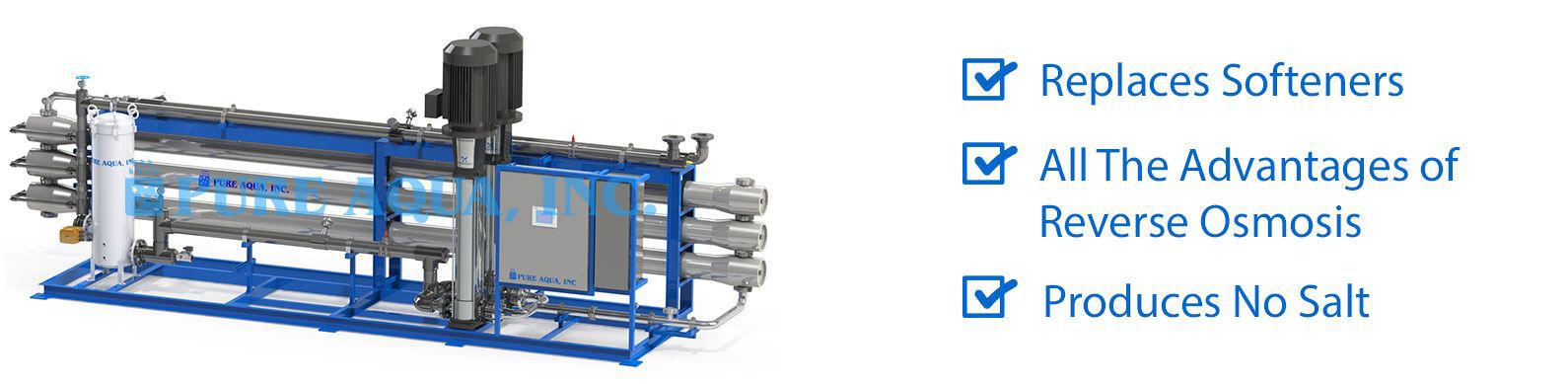

Industrial Nanofiltration NF Systems NF-500


Standard Features:

Available Options:

  • Powder coated carbon steel frame
  • 8” TFC spiral wound membranes
  • Stainless steel multi-stage pump with TEFC motor
  • FRP membrane housing
  • 5 micron cartridge prefilter
  • 460V/3Ph/60Hz power requirement
  • PLC based control panel
  • Programmable time delay and set points
  • Status indicators
  • Motor starter
  • NEMA 12 enclosure
  • Low pressure switch
  • High pressure switch
  • Liquid filled pressure gauges
  • Permeate conductivity monitor
  • Permeate & concentrate flow meters
  • Remote monitor/control option
  • Feed water conductivity monitor
  • Membrane cleaning skid
  • Automatic hourly flush
  • Feed/Permeate blending
  • Export crating
  • 220V or 380-415V/3Ph/50 or 60 Hz
  • Product tank level switch
  • Feed pH controller with sensor
  • Feed ORP controller with sensor
  • Flow totalizer
  • Chemical dosing systems
  • Media and Iron prefiltration systems
  • UV sterilization systems
  • Water softeners
  • Post RO systems
  • Containerized NF systems
[/custom-features]
[custom-usage]

Nanofiltration is also becoming more widely used in chemical processing, food processing applications such as textile industry wastewater treatment, dairy, for simultaneous concentration and partial (monovalent ion) demineralization.

[/custom-usage]
[custom-documents]  [/custom-documents]
[custom-360-view]

Here at Pure Aqua, Inc., we engineer and build all of our water treatment systems in-house.

Our turn-key water treatment systems are all pre-engineered using the latest CAD technology available.

This enables our teams to build and deliver treatment systems to our customers with quick turnaround times.

Many of our customers require custom engineered systems. These are typically built around similar core systems and thus allowing for improved turnaround times, even for one-off designs.


[/custom-360-view]
Models
Features
Applications
Docs
Videos
360 View
Reviews
(6 reviews) Write a Review
  • 5
    Great system

    Posted by Derek M. on Mar 3rd 2020

    This system is a workhorse. It has been producing fresh water from dirty water and provides safe a great tasting drinking water here in our community.

  • 5
    High quality!

    Posted by Jonathan A. on Nov 19th 2019

    Nice clean design and I like how they arranged the racks of vessels and piping. The actual NF system is even better than the 3D drawing that we saw.

  • 5
    High efficiency

    Posted by Peter L. on Feb 16th 2019

    It removes turbidity with high efficiency

  • 5
    Good Filtration System

    Posted by Anthony T. on Jun 13th 2018

    We are glad we chose this system. Easy to operate and quality of water is great and consistent. Produces 30 GPM of fresh water for our process plant.

  • 5
    Great selection

    Posted by Mike S. on Nov 11th 2017

    Works well and our team maintains the NF system very well too. System came with very detailed manuals that are easy to follow. Great buy.

  • 5
    Best price

    Posted by Chad B. on Jan 17th 2017

    That was the perfect fit for our water treatment project...the price was reasonable for the quality we got. Appreciated guys!
