Reverse Osmosis System 15000 GPD - Mexico

Product Description

From its initial start-up, the Reverse Osmosis machine has been working properly with minimal trouble-shooting. A quality reverse osmosis machine is designed to deliver high quality service by removing massive amounts of salt and other impurities from wells, lakes, rivers, and the ocean through a process called 'reverse osmosis".

The process of reverse osmosis deals with the use of a high pressure pump which applies extreme pressure to the high saline concentrated side of a semi-porous membrane, combatting a natural process called "Osmosis". Naturally, osmosis transports salt through a semi-porous membrane from a region with low saline concentration to a region with high saline concentration. Its goal is to gain an equal quantity of saline concentration on both sides of the membrane. With the use of the high pressure pump, reverse osmosis comes in to direct osmosis to the opposite direction. The pump applies high pressure to the highly concentrated saline side of the membrane, pushing salty water and other impurities across the membrane, only allowing water molecules to flow through. Salt and the impurities are rejected and later thrown into the drain on the concentrate side. In the end, we obtain purified water with 99% less dissolved salts on the permeate side of the membrane.

Country: Mexico

System/Product: Reverse Osmosis

Flow Rate: 15,000 GPD

Date: January 2013

Components & Brands:
- RO300 series
- Pre and post treatments

[custom-specifications]

Brackish water is water that is taken from estuaries and river openings. It salt concentration falls in between fresh water and seawater. Not as pure as fresh water, yet not as salty as seawater. Its mild salty concentration is discouraged for human consumption. To generate purified water from brackish water, a water filtration system relies on a method called "reverse osmosis" for assistance.

[/custom-specifications]

[custom-features]

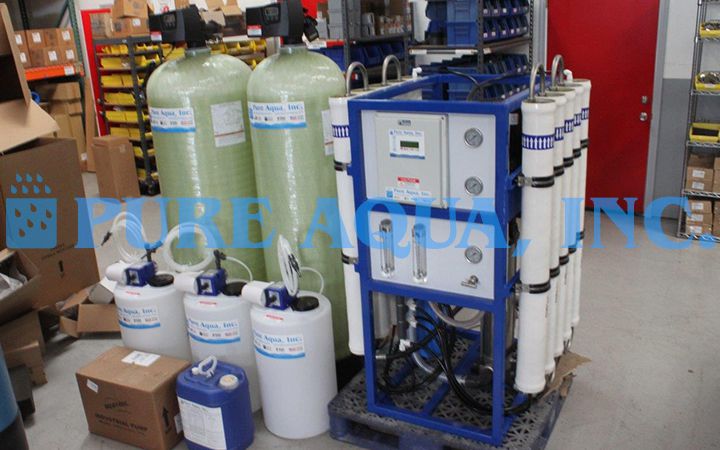

Pure Aqua manufactured and supplied reverse osmosis system with 10,000 PPM feed water TDS, complete with pre and post treatment to a major company Mexico. The system was designed to produce 15,000 GPD.

[/custom-features]

[custom-usage]

  • Minimal civil work and construction
  • Small footprint
  • Plug and play installation
  • High-quality components (Grundfos pumps, DOW Filmtec membranes, Codeline vessels, Pure Aqua microprocessor control panel)
  • High recovery design
  • High rejection membranes
  • Low energy and chemical consumption

[/custom-usage]
