Since the initial startup, the machine has been operating accordingly with minimal troubleshooting. An RO machine is manufactured for the purpose of removing large amounts of salts, minerals, and other contaminants from waters that are highly inconsumable. A high pressure pump is employed to fight the osmotic pressure of a natural process called “Osmosis”.
Osmosis naturally carries salt through a semi permeable membrane from an area with low saline concentration to an area with high saline concentration to gain an equal amount of saline concentration on both sides. Halting this natural process requires the assistance of a technology called "reverse osmosis". Reverse Osmosis is tasked with directing osmosis in the opposite direction. This is done by using a high pressure pump that applies extreme pressure to the highly saline concentrated side of the membrane, forcing salty water across the semi permeable membrane, allowing only water molecules to flow in while rejecting salts and other impurities from passing through. Finally, purified water comes out on the permeate side while salt and the other impurities are discharged into a drain from the concentrate side.
System/Product: Reverse Osmosis
Flow Rate: 15,000 GPD
Components & Brands:
- Pre and post treatments
Brackish water is water that is taken from estuaries and river openings. It salt concentration falls in between fresh water and seawater. Not as pure as fresh water, yet not as salty as seawater. Its mild salty concentration is discouraged for human consumption. To generate purified water from brackish water, a water filtration system relies on a method called "reverse osmosis" for assistance.

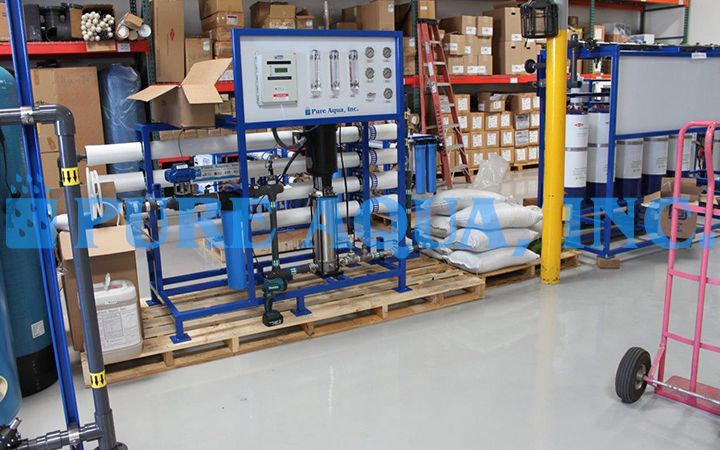

Pure Aqua manufactured and supplied a Reverse Osmosis system complete with pre and post treatment to a major company in Nigeria.
- Minimal civil work and construction
- Small footprint
- Plug and play installation
- High-quality components (Grundfos pumps, DOW Filmtec membranes, Codeline vessels, Pure Aqua microprocessor control panel)
- High recovery design
- High rejection membranes
- Low energy and chemical consumption
