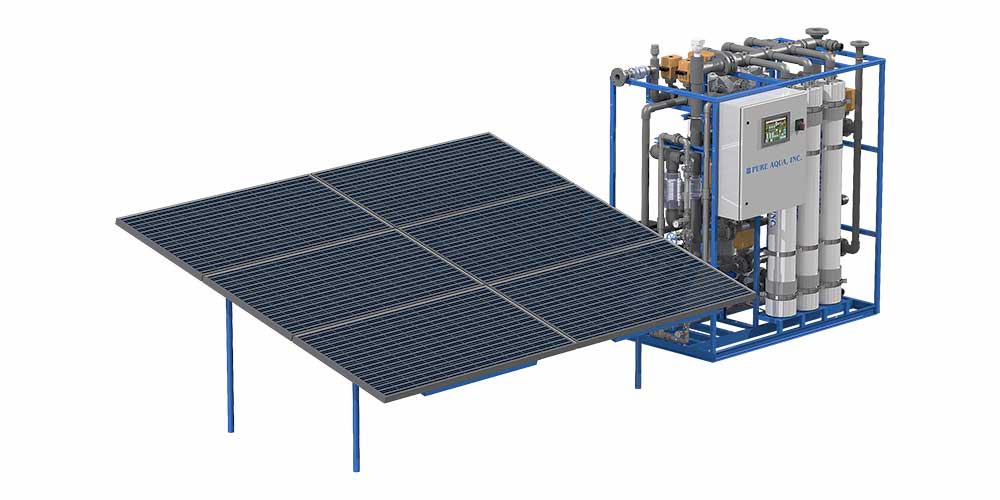

Solar Powered Ultrafiltration UF Systems

Quality Systems at an exceptional value
Product Description

Pure Aqua, Inc. manufactures different capacities of UF systems. These systems area skid mounted and completely automatic that can take an existing water line that is getting its water from rivers, lakes, water tanks and cisterns.

Solar Panels

  • a photovoltaic module is used to generate electricity
  • a solar thermal collector is used to generate heat (generally hot water)

Solar Cells

A solar cell or photovoltaic cell is a device that converts light energy into electrical energy. Sometimes the term solar cell is reserved for devices intended specifically to capture energy from sunlight, while the term photovoltaic cell is used when the light source is unspecified. The field of research related to solar cells is known as photo voltaics.
Solar electric panels contain many photovoltaic cells electrically connected and packaged behind glass for mechanical protection and electrical insulation. The modules are usually connected together in an array and with other components such as a mounting frame and an electrical inverter (for on grid) or a charge controller and batteries (for off grid).

In addition to solar panels, a photovoltaic (PV) system requires a mounting structure to tilt panels toward the sun, an inverter to convert panel-generated direct current (DC) into appliance-friendly alternating current (AC), battery storage to compensate for unfavorable weather conditions, and a charge controller to regulate battery operation.

Hybrid Systems

In Hybrid Power Systems the power is generated from a combination of power sources such as solar PV, wind generator, hydro generators and may use a LPG, petrol or diesel generator when the renewable energy generator is not meeting the power demand.

[custom-specifications]
solar powered ultrafiltration UF membranes systems 10080-1037090 gpd specifications

This system can run approximately 12 hours continuously using sunlight. This system will use a solar / battery powered 12 or 24 volt system to supply its primary power needs. Whenever the sun in shinning, the solar system will always be recharging the battery, even when the water treatment system is working. This system comes as a turn-key package. It is designed for easy installation as all of the wiring is pre wired and all that needs to be done is hang the water treatment system on the wall in a convenient location.

For more information, please view/download our "Data Sheet"

[/custom-specifications]
[custom-features]

Features: Consumables:
  • Available at different capacities
  • Rectifier, and battery
  • Ultrafiltration membrane technology
  • Charcoal post filtration: additional filtration and flavoring
  • High volume pleated pre-filtration
  • Onboard disinfecting chemical injection system
  • Automatic UF backwashing
  • Mos major components are NSF certified
  • Flow meter: to monitor productivity
  • Pre & Post pressure gauges
  • 24 Volt VAC Valves (Microprocessor controlled)
  • Pressure drop auto kill switch-prevents running dry
  • All corrosion resistant construction
  • Supports well or river operations
  • Optional retractable service platform
  • Adjustable solar panel angle
  • Multiple power source capable
  • Integrated solar power
  • Generator
  • Wind turbine
  • AC power (110-220
  • UF membrane
  • Pre-filter
  • Post filter
  • UV bulb replacement
  • Chlorine for chemical injector
[/custom-features]
[custom-usage]

The ideal applications of a Solar-Powered UF system include:

  • Missionary Agencies

  • Travel Agencies

  • Adventure Tours

[/custom-usage]
[custom-documents] [/custom-documents]
[custom-360-view]

Here at Pure Aqua, Inc., we engineer and build all of our water treatment systems in-house.

Our turn-key water treatment systems are all pre-engineered using the latest CAD technology available.

This enables our teams to build and deliver treatment systems to our customers with quick turnaround times.

Many of our customers require custom engineered systems. These are typically built around similar core systems and thus allowing for improved turnaround times, even for one-off designs.


[/custom-360-view]
