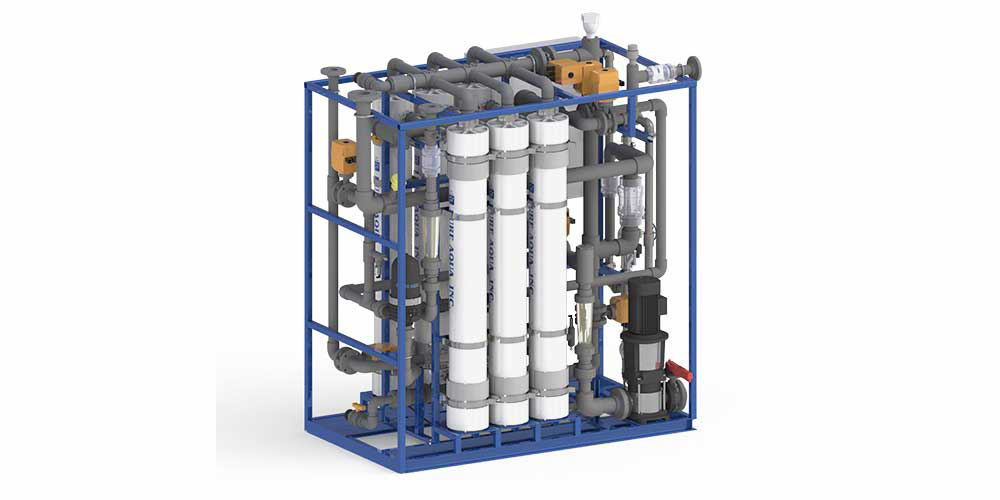

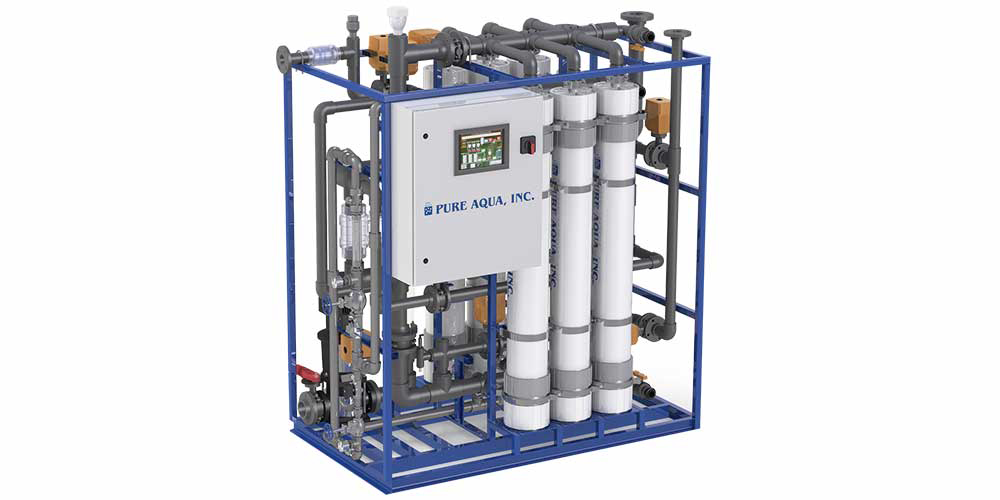

Industrial Ultrafiltration UF Systems

Product Description

Ultrafiltration is a pressure-driven membrane separation process that removes suspended or particulate matter (including colloids & silt) from water. Ultrafiltration is more reliable than conventional multimedia filtration that removes particles of 10 microns in size or larger. Ultrafiltration also efficiently removes bacteria and most viruses.

Ultrafiltration systems eliminate the need for clarifiers and multimedia filters. Standard design is based on a UF module with outside-in flow configuration which allows for less plugging, higher solids loading, higher flow area and easy cleaning. Pure Aqua supplies a full line of standard and fully customizable Ultrafiltration systems, all of which are engineered using advanced 3D computer modeling and process design software.

[custom-specifications]

industrial ultrafiltration UF membranes systems 10080-1037090 gpd specifications

Operation Specifics:
Power supply: 460V/3Ph/60Hz Temperature 25°C (max. 40°C) TOC < 10 max. < 40 mg/L	pH 6-9 (2-11 cleaning) TSS < 50 max. < 100 mg/L Backwash frequency 20-60 minutes	Turbidity < 50 max. 300 NTU Cl2 0.5 ppm (2,000 cleaning) COD < 20 max. < 60 mg/LM Max oil & grease: 2mg/L

Model No.	Capacity - Reclaimed Water Flux at 24 GFD		Capacity - Surface Water Flux at 35 GFD		Capacity - Seawater Flux at 48 GFD		Capacity - Ground Water Flux at 53 GFD		Qty of UF Modules
Model No.	GPD	M³/ Day	GPD	M³/ Day	GPD	M³/ Day	GPD	M³/ Day	Qty of UF Modules
UF-1	10,080	38	16,992	64	23,760	90	27,360	104	1
UF-2	20,160	76	33,984	129	47,520	180	54,720	207	2
UF-3	30,240	114	50,976	193	71,280	270	82,080	311	3
UF-4	40,320	153	67,968	257	95,040	360	109,440	414	4
UF-6	60,480	229	101,952	386	142,560	540	164,160	621	6
UF-8	80,640	305	135,936	515	190,080	720	218,880	829	8
UF-10	100,800	382	169,920	643	237,600	899	273,600	1,036	10
UF-12	120,960	458	203,904	772	285,120	1,079	328,320	1,243	12
UF-14	141,120	534	237,888	901	332,640	1,259	383,040	1,450	14
UF-16	161,280	611	271,872	1,029	380,160	1,439	437,760	1,657	16
UF-18	181,440	687	305,856	1,158	427,680	1,619	492,480	1,864	18
UF-20	201,600	763	339,840	1,286	475,200	1,799	547,200	2,071	20
UF-24	241,920	916	407,808	1,544	570,240	2,159	656,640	2,486	24
UF-30	302,400	1,145	509,760	1,930	712,800	2,698	820,800	3,107	30
UF-32	322,560	1,221	543,744	2,058	760,320	2,878	875,520	3,314	32
UF-40	403,200	1,526	679,680	2,573	950,400	3,598	1,094,400	4,143	40
For more information, please view/download our "Data Sheet"

[/custom-specifications]

[custom-features]

Industrial-ultrafiltration-system-by-pure-aqua

Standard Features:	Available Options:
High-strength, hollow-fiber membranes Stainless steel backwash pump Automatic screen filter Schedule 80 PVC piping PLC control panel Automatic backwash NEMA 12 enclosure Digital flowmeter Power coated carbon steel skid Liquid filled pressure gauges (panel mount) Electrically actuated valves	Chemically Enhanced Backwash (CEB) Feed/backwash oxidizer (dosing system) Membrane cleaning skid (CIP) 380-415V/3Ph/50Hz power supply Turbidity monitor Stainless steel multi-stage feed pump Feed pump VFD PLC + HMI Filtrate (backwash) tank air compressor Pressure Transducers Air scour Duplex 2205 or SS 316 automatic screen filter

[/custom-features]

[custom-usage]

The ideal applications for a Pure Aqua Ultrafiltration system include:
RO pretreatment Drinking water treatment Water Recycling And Reuse	Grey water treatment Process separation or recovery Reclaimed Water Treatment

[/custom-usage]

[custom-documents]

Industrial Ultrafiltration UF Systems Data Sheet

[/custom-documents]

[custom-360-view]

Here at Pure Aqua, Inc., we engineer and build all of our water treatment systems in-house.

Our turn-key water treatment systems are all pre-engineered using the latest CAD technology available.

This enables our teams to build and deliver treatment systems to our customers with quick turnaround times.

Many of our customers require custom engineered systems. These are typically built around similar core systems and thus allowing for improved turnaround times, even for one-off designs.

[/custom-360-view]
